Part Number: 7686

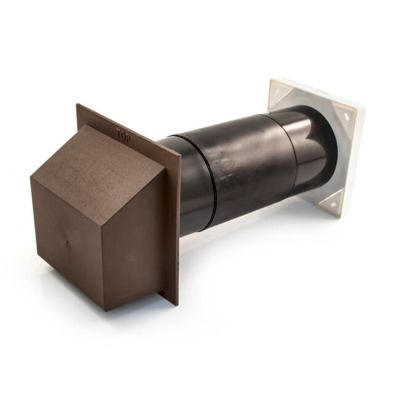

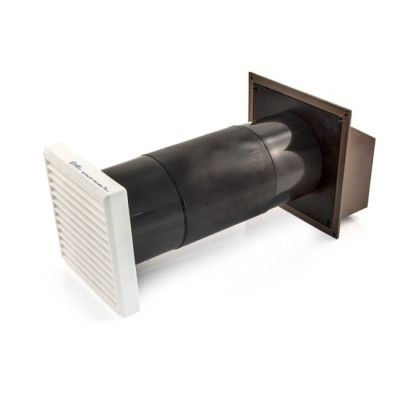

Draughtbuster DB5 Ventilator - Terracotta/White

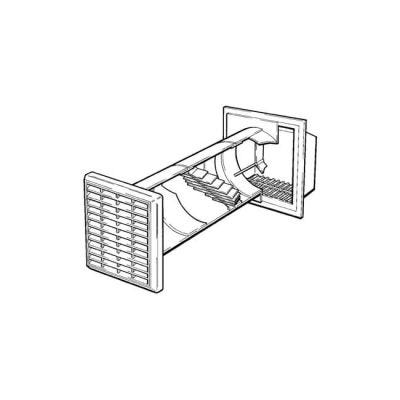

Ventilators designed to reduce draught and muffle outside noises to the maximum. Daylight does not show through them. Simple three part assembly (cowls - liner - and internal louvre). Designed to be fitted with screws or mastic. All Draughtbusters meet BS 5440 : Part 2 : 2000 - BS 493 and BS 5871 : Part 3 requirements.
Fits through a circular (127 mm) hole. Equivalent free area of 75 cm².
Through wall length: 300 mm to 380 mm (12" to 15") telescopic.
For appliances up to 22 kW Net - (24 kW Gross).

Product Specification

Brand Draughtbuster
Standards BS 5440 Part 2:2000 - BS 493 And BS 5871 Part 3
Colour Terracotta
Dimensions External Grille 190 Mm X 202 Mm , Internal Grille 165 Mm X 165 Mm
Free Area 75 Cm²
Free Area Size 75 Cm²
Length 300 To 380 Mm
Size 300 Mm - 380 Mm
Tube Diameter 125 Mm
Type Circular Ventilator
