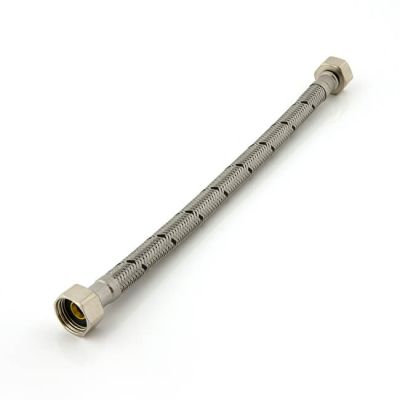

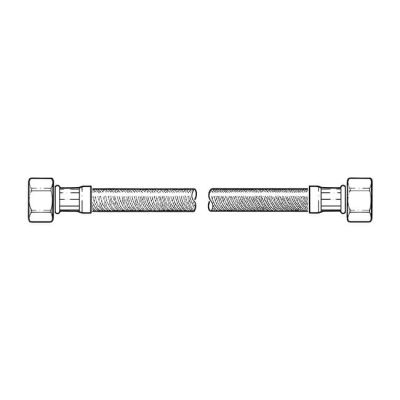

Flexible Tap Connector 1/2" x 1/2" x 300mm

Name: Flexible Tap Connector 1/2" x 1/2" x 300mm
Brand: Unbranded
SKU: 25242
Price: 2.02 GBP
Availability: InStock

8 mm bore, 1/2" BSP Female Swivel Union x BSP Female Swivel Union.
Stainless steel braided, EPDM rubber flexible tap connector with brass couplings. Suitable for potable and non-potable applications.
Working pressure: 16 bar max. for cold water use only and 10 bar max. at 85°C. Washers included.
WRAS approved product.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Approved by	WRAS
Bore	8 mm
Colour	Stainless Steel
Connection	BSP F Swivel Union
Finish	Stainless Steel Braid
Length	300 mm
Material	Stainless Steel
Size	1/2" x 1/2"
Suitable Application	Suitable for potable and non-potable applications.
Temperature & Pressure Range	16 bar max. for cold water use only & 10 bar max. at 85°C
Type	Flexible Connector
