Part Number: 25336
Manufacturer's Part Number: 0450505

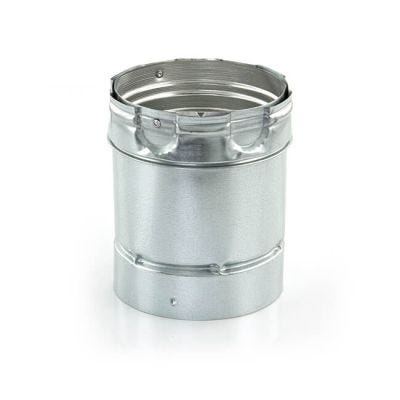

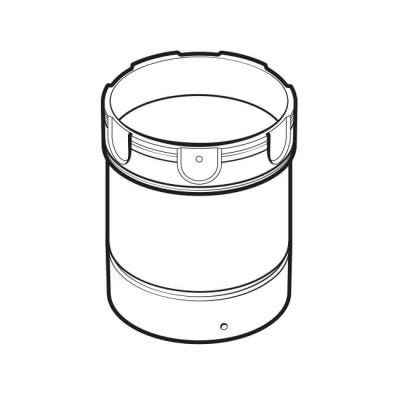

Flue Adaptor - 125 B Vent to IL
Flue adaptor to connect between IL and B Vent flue systems.
IL twin wall, air gap insulated gas vent system for gas appliances in residential or small commercial installations with inputs up to 70 kW., having a draught-hood or with a 250°C max. flue gas temperature and zero or negative pressure in the flue. Aluminium liner with Zalutite outer casing, suitable for internal and external use, either as a complete system or in combination with flue blocks or a brick chimney. Maximum external or ventilated roof area use up to 3 m.
Certified to BS EN 1856-1 and tested to BS EN 1859 to the performance designations as defined in Table A. Manufactured by a BS EN 9001 registered company.
Must not be used for condensing, oil-fired or solid fuel systems.
IL twin wall, air gap insulated gas vent system for gas appliances in residential or small commercial installations with inputs up to 70 kW., having a draught-hood or with a 250°C max. flue gas temperature and zero or negative pressure in the flue. Aluminium liner with Zalutite outer casing, suitable for internal and external use, either as a complete system or in combination with flue blocks or a brick chimney. Maximum external or ventilated roof area use up to 3 m.
Certified to BS EN 1856-1 and tested to BS EN 1859 to the performance designations as defined in Table A. Manufactured by a BS EN 9001 registered company.
Must not be used for condensing, oil-fired or solid fuel systems.
See More >
Discontinued
This is discontinued
Specification
Brand | SFL® Flue & Chimney |
Standards | BS EN 1856-1 & BS EN 1859 |
For Use With | B Vent to IL flue systems |
Input | Up to 70 kW |
Material | Aluminium liner with Zalutite outer casing |
Type | Flue Adaptor |
