Part Number: 25569
Four Pack Automatic Changeover Kit with OPSO & S/S Pigtails
700H to BS EN 16129.

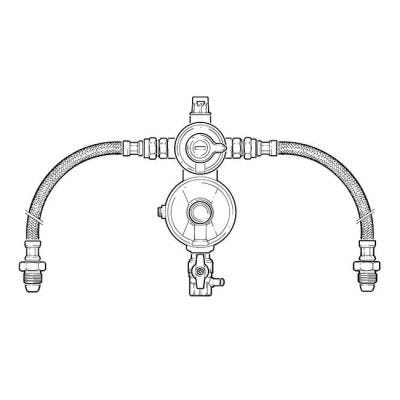

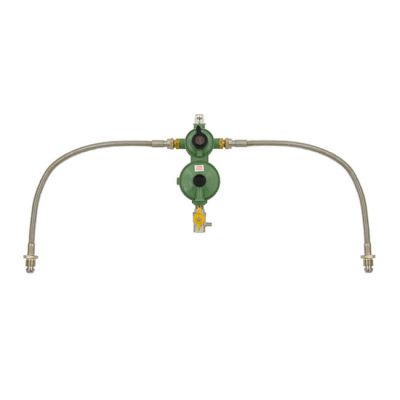

Kit comprises one automatic changeover regulator to BS EN 16129, two W20 tee pieces wth non-return valves, two 500 mm and two 750 mm stainless steel pigtails to ISO 10380, POL connectors incorporating excess flow and non-return valves, one ½" M x F shut-off valve with test point, wall mounting bracket and emergency instruction plaque.
Kit comprises one automatic changeover regulator to BS EN 16129, two W20 tee pieces wth non-return valves, two 500 mm and two 750 mm stainless steel pigtails to ISO 10380, POL connectors incorporating excess flow and non-return valves, one ½" M x F shut-off valve with test point, wall mounting bracket and emergency instruction plaque.
See More >
Specification
Standards | Regulator: BS EN 16129, Pigtails: ISO 10380 |
Capacity | 4.3 kg/h |
Connection | BSP F |
Hose Quantity | 4 |
Inlet | POL |
Inlet Pressure | Max: 16 bar |
Kit Contents | One automatic changeover regulator to BS EN 16129, two W20 tee pieces with non-return valves, two 500 mm and two 750 mm stainless steel pigtails to ISO 10380, POL connectors incorporating excess flow and non-return valves, one 1/2" M x F shut-off valve with test point, wall mounting bracket and emergency instruction plaque. |
OPSO | 100 to 110 mbar |
Outlet Connection | 1/2" BSP F |
Outlet Pressure | 37 mbar |
Type | Automatic Changeover Kit |
