Part Number: 9625

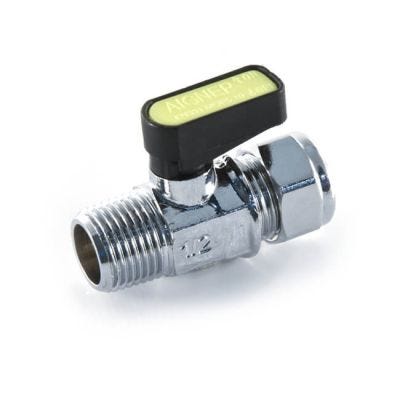

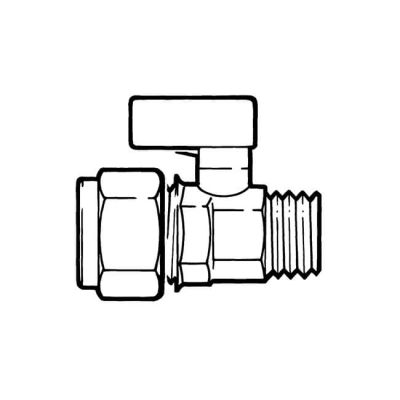

Gas Ball Valve - 8mm x 1/4" BSP TM Lever Handle
Compact 8mm compression x 1/4" BSP TM plated brass ball valve with yellow coded operation lever. The handle may easily be removed to expose a screwdriver slot and spanner flats for alternative operation.
Manufactured and tested to BS EN 331 by a BS EN ISO 9001 registered company.
For Natural Gas, LPG, water, oils and compressed air.
Manufactured and tested to BS EN 331 by a BS EN ISO 9001 registered company.
For Natural Gas, LPG, water, oils and compressed air.
See More >
Specification
Approved by | BS EN ISO 9001 & BS EN 331 |
Application | For Natural Gas, LPG, water, oils and compressed air. |
Connection | Compression x BSP M |
Finish | Plated |
Full Bore | No |
Handle | Lever |
Handle Colour | Yellow/Black |
Lockable | No |
Material | Brass |
Max. Operating Pressure | 20 bar |
Max. Operating Temperature | 80°C |
Size | 8 mm x 1/4" |
Temperature Range | -20 to 80°C |
Type | Lever Valve |
