Part Number: 20843
Manufacturer's Part Number: 95260200

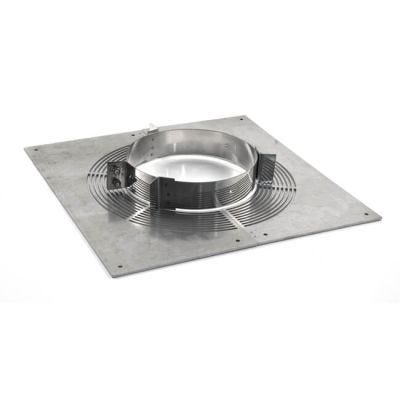

ICID Plus Floor Support Plate Ventilated 150mm, 400mm
2 piece, rectangular.
Twin wall insulated flue system specifically designed to operate continuously with temperatures up to 450°C.
Certified for corrosion resistance on gas, oil, wood and solid fuel, 4 Hour Fire Rating to BS 476-20 and ‘soot fire’ resistant. Twist-lock bayonet jointing system, secured by a locking band. Inner casing is constructed from laser welded 316L stainless steel, outer stainles steel 304 (painted black where stated) casing is load bearing. Inner liner is free to expand independently to accommodate temperature changes. Inner liner has an inward bead at the female end which acts as a capillary break preventing moisture being drawn through the joint. 25 mm of high density Rockwool insulation maintains flue gas temperature, maximising efficiency, improving flue draught on start up, minimises condensation and provides a low external case temperature.
CE Certified to BS EN1856-1.
Manufactured by a BS EN ISO 9001:2008 registered company.
For combustible floors.
|Standards||Fire Rating to BS 476-20, CE Certified to BS EN1856-1. HETAS listed.|
|Dimensions||150 mm, 400 x 400 mm|
|For Use With||Gas, Oil, Wood & Solid Fuel|
|Material||316L Stainless Steel|
|Sub Brand||ICID Plus|
|Type||Floor Support Plate|
|Wall Type||Twin wall|
