Part Number: 20831
Manufacturer's Part Number: DN8A138150
Twin wall insulated flue system specifically designed to operate continuously with temperatures up to 450°C.
Certified for corrosion resistance on gas, oil, wood and solid fuel, 4 Hour Fire Rating to BS 476-20 and ‘soot fire’ resistant. Twist-lock bayonet jointing system, secured by a locking band. Inner casing is constructed from laser welded 316L stainless steel, outer stainles steel 304 (painted black where stated) casing is load bearing. Inner liner is free to expand independently to accommodate temperature changes. Inner liner has an inward bead at the female end which acts as a capillary break preventing moisture being drawn through the joint. 25 mm of high density Rockwool insulation maintains flue gas temperature, maximising efficiency, improving flue draught on start up, minimises condensation and provides a low external case temperature.
CE Certified to BS EN 1856-1.
HETAS listed.
Manufactured by a BS EN ISO 9001 registered company.
Supplied with 90° and 135° tees.
Certified for corrosion resistance on gas, oil, wood and solid fuel, 4 Hour Fire Rating to BS 476-20 and ‘soot fire’ resistant. Twist-lock bayonet jointing system, secured by a locking band. Inner casing is constructed from laser welded 316L stainless steel, outer stainles steel 304 (painted black where stated) casing is load bearing. Inner liner is free to expand independently to accommodate temperature changes. Inner liner has an inward bead at the female end which acts as a capillary break preventing moisture being drawn through the joint. 25 mm of high density Rockwool insulation maintains flue gas temperature, maximising efficiency, improving flue draught on start up, minimises condensation and provides a low external case temperature.
CE Certified to BS EN 1856-1.
HETAS listed.
Manufactured by a BS EN ISO 9001 registered company.
Supplied with 90° and 135° tees.
See More >
Specification
Brand | Schiedel |
Sub Brand | ICID Plus |
Standards | BS 476-20, BS EN 1856-1, BS EN ISO 9001 |
For Use With | Gas, Oil, Wood & Solid Fuel |
Hetas Listed | Yes |
Material | 316L Stainless Steel |
Operating Temperature | 450°C |
Size | 150 mm |

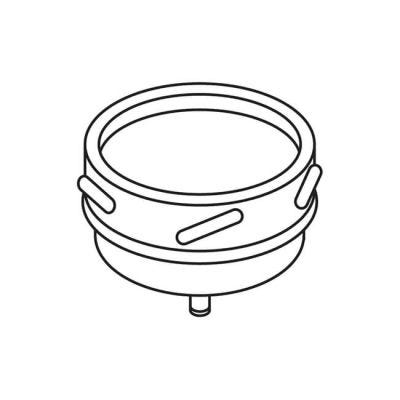

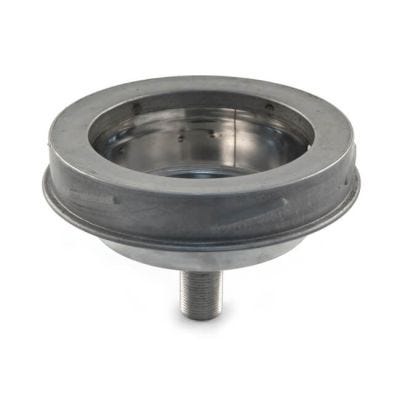

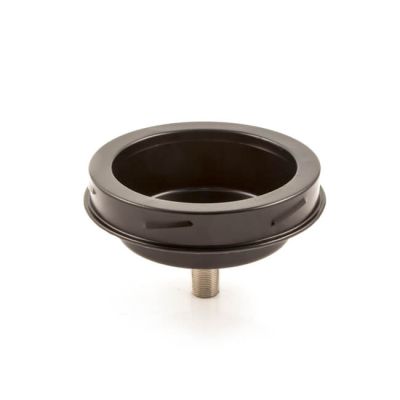

Type | Tee Cap |
Wall Type | Twin wall |
