Part Number: 27235
Manufacturer's Part Number: AXONIC65/PN25/300

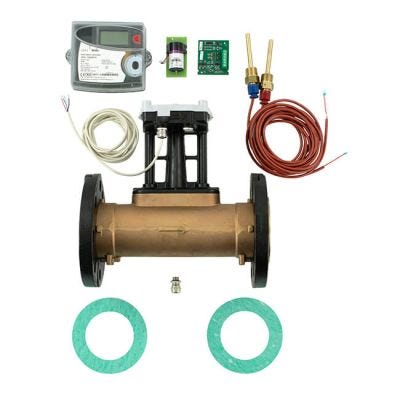

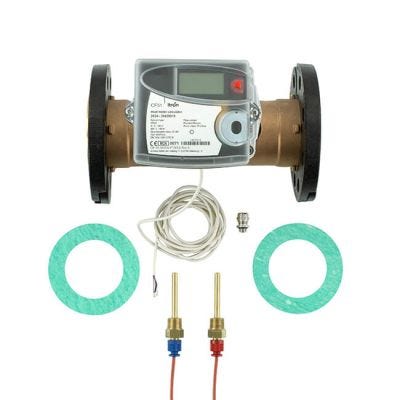

Itron Axonic Static Ultrasonic Flow Meter - DN65 flanged PN25
Itron Axonic is a static ultrasonic flow meter for district heating and cooling applications.
It is equipped with a universal interface which allows it to be easily connected to the supplied Itron CF51 from which it is powered.
Features high accuracy and repeatability, outstanding dynamic range, still measures when exceeding Qs, mobile flange design, insensitive to flow disturbances, self-diagnostic functions and can be fully insulated.
Complies with BS EN 1434 Class 2, MID approved.
Features high accuracy and repeatability, outstanding dynamic range, still measures when exceeding Qs, mobile flange design, insensitive to flow disturbances, self-diagnostic functions and can be fully insulated.
Complies with BS EN 1434 Class 2, MID approved.
See More >
Specification
Brand | Itron |
Standards | MID & BS EN 1434 Class 2 |
Dimensions | H 204 x W 200 mm |
Flow Rate | Max: 50 m³/h |
Nominal Bore | DN65 |
Nominal M3/H | 25 m³/h |
Pressure Loss | ≤0.10 bar @ Qp |
Size | DN65 flanged PN25 |
Temperature Range | 1 to 130°C (heating) and 1 to 50°C (cooling) |
Type | Heat Meter |
