Part Number: 17955

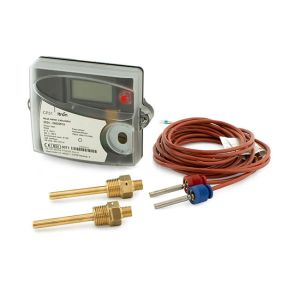

Itron CF51 Heat/Energy Meter Kit
The heat/energy meter kit consists of an integrator, two temperature sensors and immersion pockets. A pulsed hot water meter (to be purchased separately) is installed in the flow or return pipe and counts the volume of water. Signals from the flow meter and the sensors are transferred to the integrator, which is designed to calculate the consumption of heat/energy in power networks from 100 W to 30 MW, where water is the heating or cooling medium.
Complies with BS EN 1434-2/+A1 Class 2, MID approved.
Complies with BS EN 1434-2/+A1 Class 2, MID approved.
See More >
To Be Discontinued
This item will be discontinued soon
Specification
Brand | Itron |
Standards | BS EN 1434-2/+A1 |
Accessories | Integrator, 2 X Temperature Sensors and 2 X Immersion Pockets. |
Application | The heat/energy meter is designed to calculate the consumption of heat/energy in power networks from 100 W to 30 mW, where water is the heating or cooling medium. |
Material | Plastic |
Type | Heat Meter |
