ITRON G25P Diaphragm Gas Meter

£861.37 £717.81
£861.37 £717.81
More product options available

Part Number: 23669

Manufacturer's Part Number: ACDG25

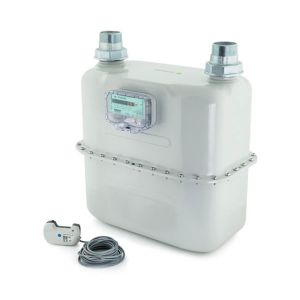

ITRON G25P Diaphragm Gas Meter

ITRON G25P Diaphragm Gas Meter is manufactured to ISO 9001 standards, adhering to rigorous quality standards, ensuring reliable performance and accurate readings. It is certified under the European certification regime and sealed for authenticity, meeting MID (04/22/EC) module B and BS EN 1359 standards.

This commercial meter is suitable for a wide range of applications, offering a primary capacity of 40 m³/h and a secondary capacity of 18.5 m³/hr at 0.5 mbar pressure loss.

Featuring a sturdy coated steel casing, this meter is designed for durability and longevity. With a maximum operating pressure of 0.5 bar, it is suitable for various gas applications, including natural gas and LPG.

The meter's mechanical display provides clear and easy-to-read measurements in cubic meters, while its diaphragm type ensures precise measurement accuracy. Equipped with a 2" BSP TM meter connection size and outlet connection, it offers compatibility with standard plumbing fittings.

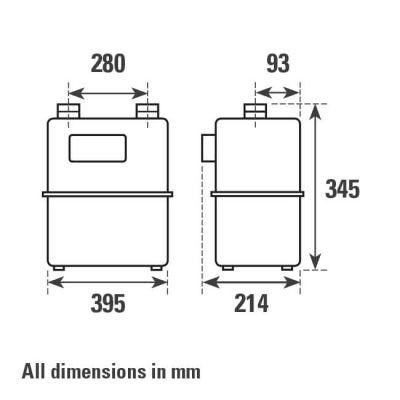

(Please verify the inlet/outlet dimensions ('A') and connection sizes to ensure compatibility with specific requirements, as they may differ from traditional UK meter dimensions).

For added convenience, the meter comes supplied with 2" BSP meter unions and a Cyble module for pulse output, along with a 5-meter lead for installation flexibility (supplied without a test point)

Whether for industrial or commercial use, this Itron meter provides reliable performance and accurate measurements.

Compatible Housing Boxes, Fittings & Seals and Fixings available.

  • Designed for use with natural gas and LPG
  • Manufactured to ISO 9001 standards
  • Approved to MID (04/22/EC) module B and BS EN 1359
  • Primary capacity of 40 m³/h
  • High level of accuracy
  • Maximum operating pressure of 0.5bar
  • 2” BSP meter connection size
  • Comes supplied with 2” BSP meter union and Cyble module
See More >

Specification

Brand Itron
Approved by MID (04/22/EC) module B & BS EN 1359
Capacity 40 m³/h
Display Mechanical
Material Coated Steel Casing
Max. Operating Pressure 0.5 bar
Meter Connection Size 2" BSP TM
Meter Type Diaphragm
Outlet Connection 2" BSP
Secondary Capacity 18.5 m³/hr at 0.5 mbar pressure loss
Suitable Application Natural Gas & LPG
Test Point No
Type Commercial Meter
Weight 13.7 kg
