Kane 258 Combustion Analyser Kit

£816.66 £680.55
£816.66 £680.55
More product options available

Part Number: 24686

Manufacturer's Part Number: KANE-258KIT

Kane 258 Combustion Analyser Kit

The Kane 258 Combustion Analyser Kit is a precise combustion analyser designed to meet the demands of professionals in the heating and plumbing industry. Suitable for natural gas, butane, propane, LPG, light oil and wood pellets. This comprehensive kit offers accurate measurement and analysis of combustion gases, ensuring optimal performance of heating systems.

The Kane 258 analyser provides comprehensive measurement of combustion gases, including oxygen (O2), carbon monoxide (CO), carbon dioxide (CO2), and flue temperature, enabling thorough assessment of heating system efficiency. With an accuracy of ±0.3% O2, ±5 ppm CO, and ±0.2% CO2 ensuring reliable results.

Equipped with advanced sensors and technology, this analyser delivers precise readings, allowing for accurate diagnosis and adjustment of combustion parameters. Making it suitable for installation and servicing domestic oil & gas appliances as well as combustion performance and efficiency checks.

With its user-friendly interface and intuitive controls, it simplifies the combustion analysis process, enabling efficient and effective testing of heating systems. Featuring built-in data logging capabilities, allowing users to record and store combustion data of up to 99 combustion and 20 pressure tests, for analysis and documentation purposes. This can then be output to the included infrared printer for physical readings.

Compact and lightweight at just 800g, the Kane 258 is portable and easy to transport thanks to the included large carry case, making it ideal for on-site testing and troubleshooting. With rechargeable NiMH batteries and including all the necessary accessories for combustion analysis, ensuring convenience and versatility for professionals.

The Kane 258 Combustion Analyser Kit offers professionals in the heating and plumbing industry a reliable and efficient solution for combustion analysis. With its versatile measurement capabilities, high accuracy, user-friendly design, and comprehensive kit contents, this analyser simplifies the process of assessing and optimising heating system performance.

Alternative Options and additional Rechargeable Batteries available.

Benefits

  • Measures combustion gasses including O2, CO, CO2 and flue temperature
  • High accuracy of of ±0.3% O2, ±5 ppm CO, and ±0.2% CO
  • Suitable for natural gas, butane, propane, LPG, light oil and wood pellets
  • Approved to EN50379 1 & 3 standards, as well as EN50270 and EN61010-1
  • Can be used when installing & servicing domestic oil & gas appliances
  • Built in data logging capability to record 99 combustion and 20 pressure tests
  • Features a user-friendly interface and intuitive controls
  • Powered by NiMH AA rechargeable batteries
  • Includes infrared printer for physical readings

Kane Service PlanKane Service Plan

See More >

Specification

Brand Kane
Standards EN 50379 1 & 3
EMC & RoHS
EN50270
EN61010-1
IEC62321-2
IEC62321-1
IEC62321-3-1
IEC62321-5
IEC62321-4
IEC62321-7-2
IEC62321-7-1
IEC62321-6
Calculates CO2 0-20%
CO/CO2 ratio
Excess air
Combustion efficiency

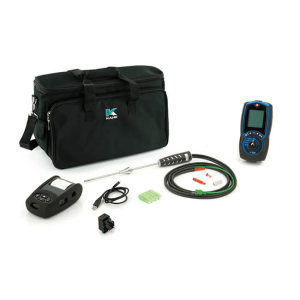

Contents Kane 258 combustion analyser,
CP2 combustion probe,
USB plug and charging lead,
IRP3 infrared printer,
Instruction manual,
Rubber sleeve with integral magnet,
Large carry case.
Dimensions Handset: H 218 x W 105 x D 47 mm,
Probe: 300 mm long (inc. handle) x 6 mm dia. with 265 mm long stainless steel shaft.
Fuel Types Natural Gas
Butane
LPG
Light oil
Wood pellets
Propane
Hose Length 3 m
Measures CO 0-2000ppm
O2 0-21%
Differential temperature
Power Supply 3 x NiMH AA Rechargeable Batteries (Supplied)
Suitable Application Install & service domestic oil & gas appliances
Combustion performance checks
Combustion efficiency checks
Type Combustion Analyser Kit
Type of Analyser Combustion
Weight 1 kg

Attachments

User Manual (10.47 MB)
