Part Number: 26449

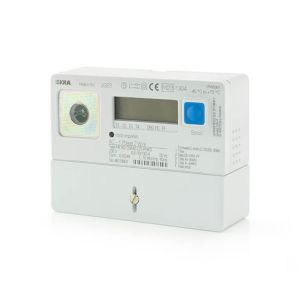

ME162 Single Phase Electric Meter
ME162 is a compact electronic credit meter for single-phase residential applications that features an LCD, internal clock and optical port (conforming to IEC 62056-21) allowing readings to be collected electronically.
Measuring scope: import and export active energy.
Nominal voltage: 120, 220, 230, 240 V/ 50 Hz.
Measuring scope: import and export active energy.
Nominal voltage: 120, 220, 230, 240 V/ 50 Hz.
Product Specification
Class Index | Class 2 or 1 (IEC 62053-21), B or A (EN 50470-1) |
Current | Basic: 5, 10 and 20A. Max. 100 A |
Dimensions | H 140 x W 130 x D 43 mm |
Display | LCD |
Meter Type | Electric |
Protection Rating | IP53 |
Suitable Application | Electronic single phase kWh |
Type | Single Phase Meter |
