Part Number: 19169
Manufacturer's Part Number: N-542-032

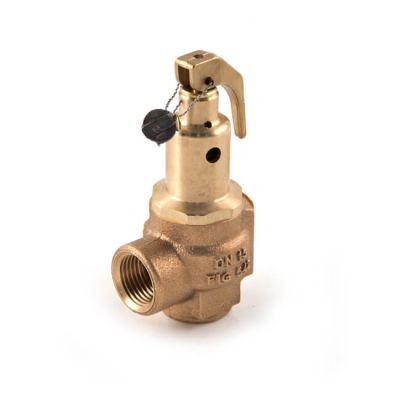

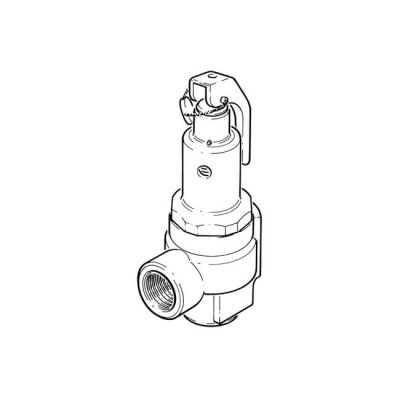

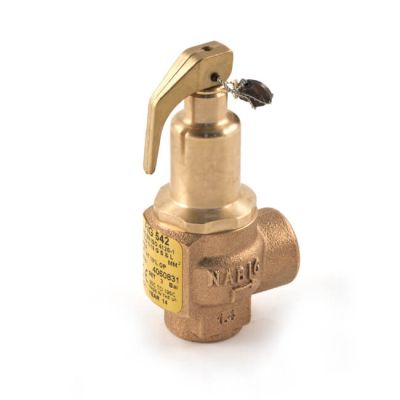

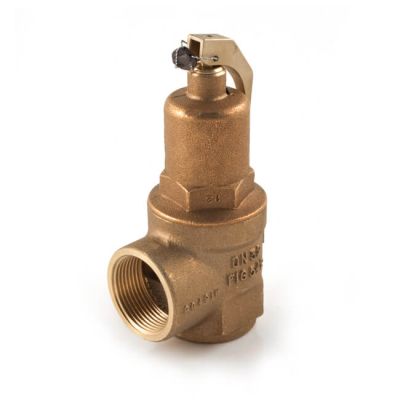

NABIC 1.1/4" BSP 3 bar Safety Relief Valve
The NABIC Fig 542 safety relief valve is suitable for use with hot water, steam, air, CO2 (to -20°C), ethylene glycol and WRc approved for use with potable water. Gunmetal construction, with diaphragm protected working parts and PTFE to metal seating.
To BS EN ISO 4126-1/+A1.
Factory set pressure : 3 bar.
Maximum operating temp. : 195°C.
To BS EN ISO 4126-1/+A1.
Factory set pressure : 3 bar.
Maximum operating temp. : 195°C.
Product Specification
| Brand | NABIC |
| Sub Brand | Nabic |
| Approved by | WRAS |
| Standards | BS EN ISO 4126-1/+A1 |
| Size | 1.1/4" |
| Type | Pressure Relief Valve |
| WRAS Approved | Approval Number: 2007021 |
