Part Number: 25912

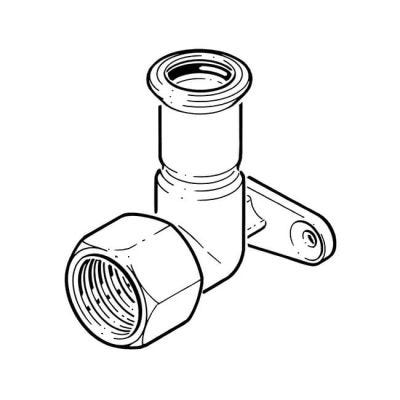

Press-fit Water Backplate Elbow 304 S/S - 22mm x 1/2" BSP F

Name: Press-fit Water Backplate Elbow 304 S/S - 22mm x 1/2" BSP F
Brand: Unbranded
SKU: 25912
Price: 6.98 GBP
Availability: InStock

Press-fit M profile fittings, with EPDM black O rings, are manufactured from 304 stainless steel. Press-fit ends have a leak before pressed feature to indicate that the joint has not been pressed. Designed for use above ground on hot and cold water services, vented and unvented closed circuit heating and chilled water applications.
Manufactured by a BS EN ISO 9001 registered company.
Fittings provide electrical continuity when pressed.
Fittings should not be painted or come into contact with cleaning products, grease, flux, mineral oil, adhesive or other solvent based materials before, during or after installation.
For installation of the fitting a press tool and M press tongs/jaws are required.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Connection	Press-fit x BSP F
Demountable/Reusable	No
Designation	Water
Equal/Reducing	Adapting
Fitting Type	Backplate Elbow
Material	304 Stainless Steel
Max. Operating Pressure	16 bar
Profile	M
Size	22 mm x 3/4"
Suitable Application	Above ground on hot and cold water services, vented and unvented closed circuit heating and chilled water applications.
Temperature Range	-20 to 120°C
Type	Elbow
