Part Number: 24849

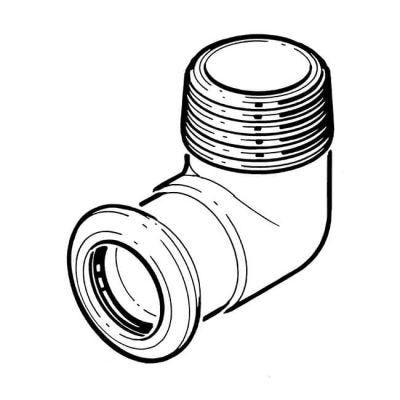

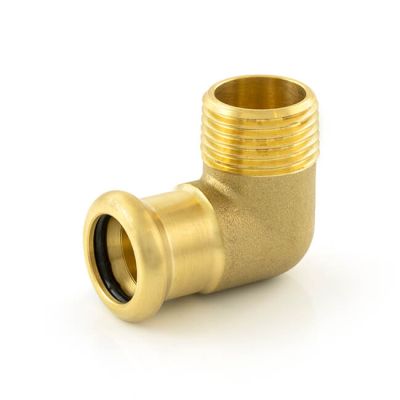

Press-fit Water Elbow Connector - 15mm x 1/2" BSP TM
Press-fit Water Elbow Connector - 15mm x 1/2" BSP TM
Water Press-fit M profile fittings, manufactured from copper or copper alloy and are designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. Press-fi t ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed. BSI Kitemark (BS 8537). Complies with DVGW Arbeitsblatt W534. Manufactured by a BS EN ISO 9001 registered company.
For identification fittings have butyl or EPDM black O rings.
Working pressure range : 16 bar at -24 to 110°C.
Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057/+A1 R250/R290. Should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
Water Press-fit M profile fittings, manufactured from copper or copper alloy and are designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. Press-fi t ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed. BSI Kitemark (BS 8537). Complies with DVGW Arbeitsblatt W534. Manufactured by a BS EN ISO 9001 registered company.
For identification fittings have butyl or EPDM black O rings.
Working pressure range : 16 bar at -24 to 110°C.
Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057/+A1 R250/R290. Should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
BSP Explained
See More >
Specification
Brand | BESt range |
Standards | BS 8537 |
Manufactured/Approved To | BS EN ISO 9001 |
Angle | 90° |
Connection | M Press x BSP Taper Male |
Designation | Water |
Equal/Reducing | Adapting |
Fitting Type | Elbow Connector |
Material | Copper |
Max. Operating Pressure | 16 bar |
Operating Pressure | 16 bar at -24°C to 110°C |
Size | 15 mm x 1/2" |
Suitable Application | Designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. |
Type | Elbow |
