Part Number: 26594

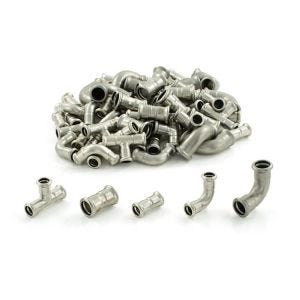

Press-fit Water Fittings Pack 304 Stainless Steel - 70 Piece
Press-fit - 70 piece 304 stainless steel fittings pack
Press-fit M profile fittings, with EPDM black O rings, are manufactured from 304 stainless steel. Press-fit ends have a leak before pressed feature to indicate that the joint has not been pressed.
Designed for use above ground on hot and cold water services, vented and unvented closed circuit heating and chilled water applications.
Fittings provide electrical continuity when pressed. Fittings should not be painted or come into contact with cleaning products, grease, flux, mineral oil, adhesive or other solvent based materials before, during or after installation. For installation, press tool and M press tongs/jaws are required.
Press-fit M profile fittings, with EPDM black O rings, are manufactured from 304 stainless steel. Press-fit ends have a leak before pressed feature to indicate that the joint has not been pressed.
Designed for use above ground on hot and cold water services, vented and unvented closed circuit heating and chilled water applications.
Fittings provide electrical continuity when pressed. Fittings should not be painted or come into contact with cleaning products, grease, flux, mineral oil, adhesive or other solvent based materials before, during or after installation. For installation, press tool and M press tongs/jaws are required.
Product Specification
| Connection | M Press |
| Demountable/Reusable | No |
| Designation | Water |
| Material | 304 Stainless Steel |
| Max. Operating Pressure | 16 bar |
| Pack Contents | 20 x 15 mm Straight coupling (P/N 25813), 10 x 22 mm Straight coupling (P/N 25814), 20 x 15 mm Elbow (P/N 25837), 10 x 22 mm Elbow (P/N 25838), 10 x 15 mm Tee (P/N 25873). |
| Profile | M |
| Suitable Application | Above ground on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. |
| Temperature Range | -20 to 120°C |
| Type | Fittings Pack |
