Part Number: 24888

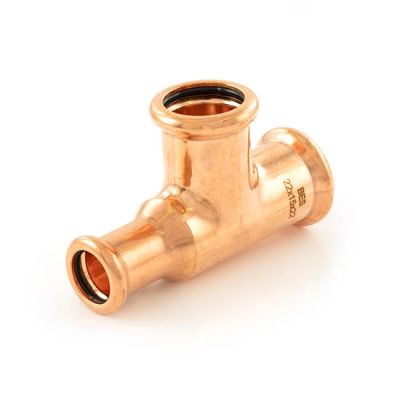

Press-fit Water One End Reduced Tee - 28 x 22 x 28mm
Press-fit Water One End Reduced Tee - 28 x 22 x 28mm
Water Press-fit M profile fittings, manufactured from copper or copper alloy and are designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. Press-fi t ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed. WRAS and KIWA approved. BSI Kitemark (BS 8537). Complies with DVGW Arbeitsblatt W534. Manufactured by a BS EN ISO 9001 registered company.
For identification fittings have butyl or EPDM black O rings.
Working pressure range : 16 bar at -24 to 110°C.
Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057/+A1 R250/R290. Should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
Water Press-fit M profile fittings, manufactured from copper or copper alloy and are designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. Press-fi t ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed. WRAS and KIWA approved. BSI Kitemark (BS 8537). Complies with DVGW Arbeitsblatt W534. Manufactured by a BS EN ISO 9001 registered company.
For identification fittings have butyl or EPDM black O rings.
Working pressure range : 16 bar at -24 to 110°C.
Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057/+A1 R250/R290. Should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
See More >
Specification
Brand | BESt range |
Approved by | WRAS |
Standards | BS 8537 |
Manufactured/Approved To | BS EN ISO 9001 |
Connection | M Press |
Designation | Water |

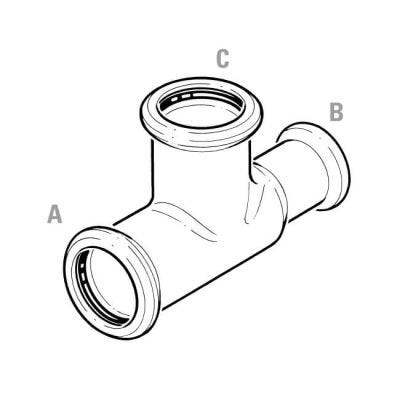

End Dimension (A) | 28 mm |
End Dimension (B) | 22 mm |
End Dimension (C) | 28 mm |
Equal/Reducing | Reducing |
Fitting Type | Tee |
Material | Copper |
Max. Operating Pressure | 16 bar |
Operating Pressure | 16 bar at -24°C to 110°C |
Size | 28 mm |
Suitable Application | Designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. |
Type | Tee |
