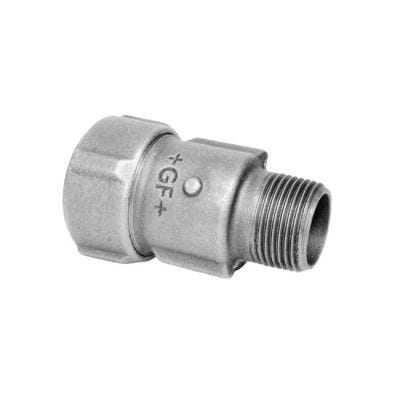

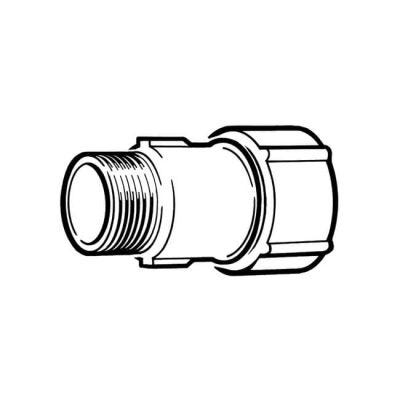

The Primofit® Adaptor Gas 3/4" BSP M x 25mm MDPE Galvanised is designed to seamlessly join yellow gas MDPE pipe together or transition to steel pipe, ensuring reliable connections for natural gas and LPG applications

This compression fitting, manufactured by a BS EN ISO 9001 registered company, simplifies the installation process with its straightforward design.

This fitting allows for easy insertion of the MDPE pipe to a predetermined length, with the nut tightened to secure the connection—no special tools required.

Constructed from malleable iron with a galvanised finish, the adaptor is robust and suitable for pressures up to 7 bar at 20°C, though the maximum operating pressure depends on the specifications of the MDPE pipe.

Accommodating angular deflection of up to 6° for alignment adjustments, making it versatile for various installation scenarios.

If installing in accordance with GIS/PL3, galvanised fittings are required which ensures it meets those standards

The Primofit® Adaptor Gas 3/4" BSP M x 25mm MDPE Galvanised is essential for safe and efficient gas distribution, meeting the required standards for quality and performance.

For underground use, compatible corrosive tape 9321, 9322 or 9323 should be used.

Benefits

• Designed for joining yellow gas MDPE pipe or transitioning to steel pipe
• Galvanised finish for enhanced durability and corrosion resistance
• Simple installation with no special tools required
• Maximum pressure rating of 7 bar at 20°C, ensuring reliability
• Accommodates up to 6° of angular deflection for misalignment adjustments
• Suitable for both natural gas and LPG applications
• Meets BS EN 10255, BS EN 10220 and BS EN ISO 9001 standards
• Temperature range of -20°C to 40°C
• Galavanised material ensuring it meets GIS/PL3 installation
