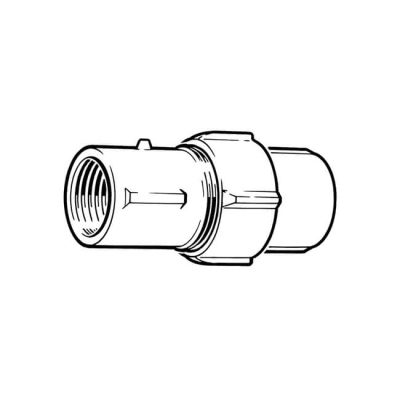

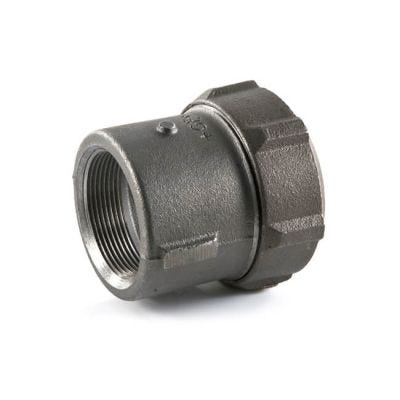

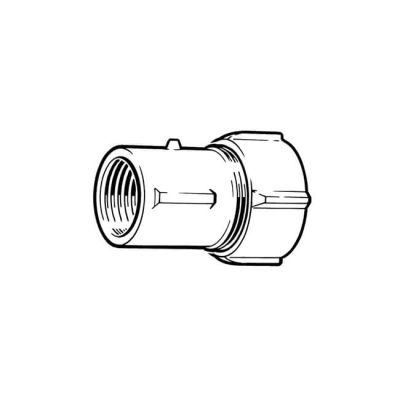

Primofit® Adaptor Gas 3/4" BSP x 25mm MDPE Black

Part number: 9844

Manufacturer's part number: 775211102

A range of compression fittings to join yellow gas MDPE pipe together and for transition; i.e. to join yellow gas MDPE pipe to steel pipe (pipe to BS EN 10255:2004(BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 or 2458 Series 1). Fittings are made by a BS EN ISO 9001:2008 registered company. The pipe is inserted into the fitting to the predetermined length and the nut tightened. Special tools are not required. Instructions are supplied with each fitting. Fittings for use with MDPE pipes are supplied complete with insert stiffeners.

Suitable for Natural Gas and LPG.

Nut and body material: Black Malleable Iron or galvanised.
Maximum pressure at 20°C 7 bar (maximum operating pressure is dependent on MDPE pipe specification and standard).
Angular deflection: the joint will cope with a misalignment of the connected pipe of up to 6° inclusive.
Seal material: Nitrile compound.
Threads: Male, BSP taper to BS 21 (ISO 7-1) female, BSP parallel to BS 21 (ISO 7-1).
Temperature range: -20 to 40°C.

Inc. VAT

£31.02

Ex. VAT

£25.85

Free delivery

UK orders over £50

Product and product options

P/N

Unit price

Quantity

Primofit® Adaptor Gas 1/2" BSP x 20mm MDPE Black

P/N 9842

Ex. VAT

£23.71

Inc. VAT

£28.45

Quantity
Primofit® Adaptor Gas 1" BSP x 32mm MDPE Black

P/N 9846

Ex. VAT

£28.94

Inc. VAT

£34.73

Quantity
Primofit® Adaptor Gas 2" BSP x 63mm MDPE Black

P/N 7459

Ex. VAT

£48.49

Inc. VAT

£58.19

Quantity
  • Product Description
A range of compression fittings to join yellow gas MDPE pipe together and for transition; i.e. to join yellow gas MDPE pipe to steel pipe (pipe to BS EN 10255:2004(BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 or 2458 Series 1). Fittings are made by a BS EN ISO 9001:2008 registered company. The pipe is inserted into the fitting to the predetermined length and the nut tightened. Special tools are not required. Instructions are supplied with each fitting. Fittings for use with MDPE pipes are supplied complete with insert stiffeners.

Suitable for Natural Gas and LPG.

Nut and body material: Black Malleable Iron or galvanised.
Maximum pressure at 20°C 7 bar (maximum operating pressure is dependent on MDPE pipe specification and standard).
Angular deflection: the joint will cope with a misalignment of the connected pipe of up to 6° inclusive.
Seal material: Nitrile compound.
Threads: Male, BSP taper to BS 21 (ISO 7-1) female, BSP parallel to BS 21 (ISO 7-1).
Temperature range: -20 to 40°C.
angular deflection
bs eu standards
  • BS EN 10255:2004 (BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 or 2458 Series 1
colour
Black
colour finish
Black
connection
BSP PF x MDPE
finish
Black
material
Malleable Iron
pressure
7 bar
size
3/4" x 25 mm
suitable application
To join yellow gas MDPE pipe together or transition; i.e to join yellow gas MDPE pipe to steel pipe
temperature range
-20°C to 40°C
thread type
BSP PF
