Part Number: 8812
Manufacturer's Part Number: RADHP02

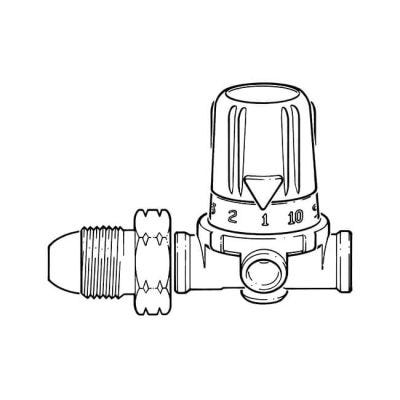

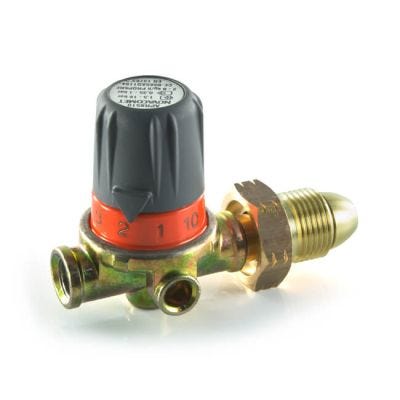

Propane High Pressure Regulator - 0.35 to 2 bar
POL x 1/4" BSP adjustable high pressure propane regulator with scale for setting approximate outlet pressure. To EN 13785.
Product Specification
Standards | EN 13785 |
Ambient Temperature | -20 to 60°C |
Capacity | 3 to 8 kg/h |
Connection | POL x BSP |
Flow Rate | 8 kg/h |
Inlet | POL |
Inlet Pressure | 4.5 - 16 bar |
Operating Pressure | 0.35 to 2 bar |
OPSO | No |
Outlet Connection | 1/4" BSP F |
Outlet Pressure | With setting scale for approx. outlet pressure |
Pressure Release Valve | No |
Pressure Test Point | No |
Size | POL x 1/4" BSP F |
Stage | Single |
Suitable Application | Propane High Pressure |
Type | Single Stage High Pressure |
UPSO | No |
