Part Number: 24148

Manufacturer's Part Number: MW15HP8

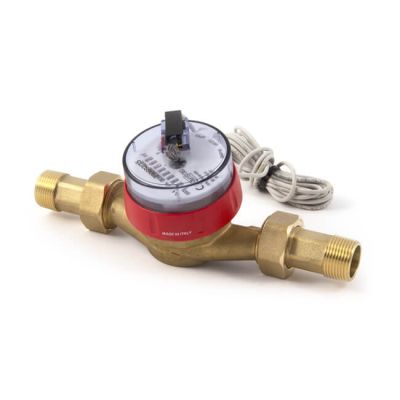

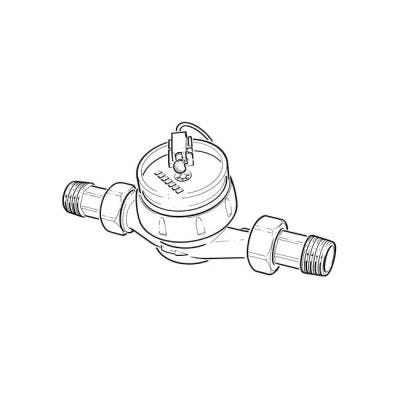

Pulsed Hot Water Meter - 15mm, 1/2" BSP TM

15 mm nominal bore, 1/2" BSP TM thread.
Pulsed hot water meter used in the monitoring of consumption, usually linked into energy information systems in, for example, factories, apartment and office blocks.
Cast copper alloy meter body with multi jet, vane wheel operation. Fitted with inductive interface and electronic pulse emitter module (interface is compatible with Mbus modules) with 1.5 m lead.
Approved according to MID standards up to R100-H and R50-VH.
Maximum recommended operating temperature is 90°C. Fitted with pulse output device. To be installed with a minimum of 5 pipe diameters of straight pipe before the inlet, and 3 after the outlet.
Suitable for horizontal and vertical installation.

Product Specification

Approved by	WRAS
Application	Monitoring hot water consumption.
Bore	15 mm
Connection	BSP TM
Hot Water Meter Max Temp	90° C
Material	Copper Alloy
Max. M3/H	2.5
Max. Operating Pressure	16 bar
Measurement	1 pulse per 1 litres
Nominal Bore	15 mm
Pulsed Facility	Yes
Size	1/2"
Type	Hot Water Meter
