Part Number: 27381
Manufacturer's Part Number: 1100044515

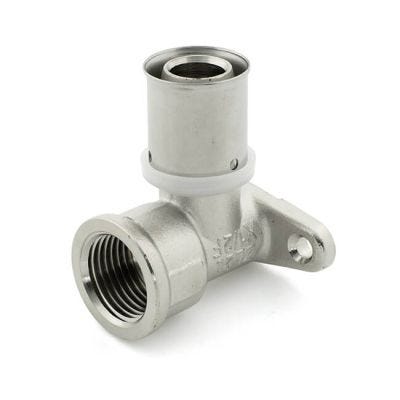

RIIFO Press-fit Wall Plate Elbow - 20mm x 1/2" BSP F
RIIFO U profile press-fit fittings manufactured from nickel plated brass with 304 stainless steel sleeves. For identification fittings have two black EPDM O rings and a white PE collar.
These fittings do NOT provide electrical continuity when pressed/installed. Fittings should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation. Not be exposed to ultraviolet lights or other high-energy radiation.
For fittings installation, press tool and U press tongs/jaws are required. See our Press Tools and Jaws.
These fittings do NOT provide electrical continuity when pressed/installed. Fittings should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation. Not be exposed to ultraviolet lights or other high-energy radiation.
For fittings installation, press tool and U press tongs/jaws are required. See our Press Tools and Jaws.
See More >
Specification
Brand | RIIFO |
Approved by | ISO 21003 & WRAS |
Connection | Press-fit x BSP F |
Equal/Reducing | Adapting |
Fitting Type | Wall Plate Elbow |
Material | Brass |
Max. Operating Pressure | 10 bar |
Max. Operating Temperature | 95°C |
Metric/Imperial | Metric |
Profile | U |
Size | 20 mm x 1/2 |
Type | Elbow |
WRAS Approved | Approval Number: 2005369 |
