Part Number: 23629
Manufacturer's Part Number: 109-5005

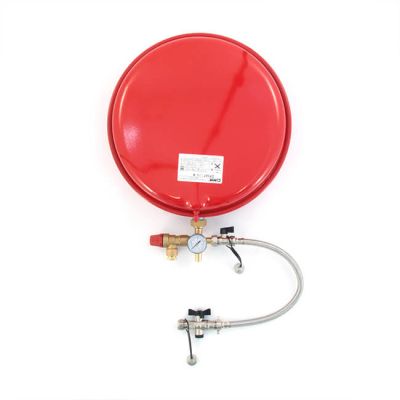

Robo Kit Compact expansion vessel with integral wall mounting bracket and filling loop kit for use in a sealed heating system.
See More >
Specification
Brand | Altecnic |
Capacity | 8 litres |
Dimensions | 387mm x 109mm |
Expansion Vessel | Compact/Flat Vessel and Kit |
Kit Contents | Expansion vessel with integral wall mounting bracket, 5 way manifold with 3/4" washer, 3 bar safety relief valve, 0 to 4 bar pressure gauge, Filling loop with isolating valves, one with double check valve assembly. |
Max. Operating Pressure | 4 bar |
Max. Temperature | 100° C |
Potable | No |
Suitable Application | Central heating installation Advantages • System Flexibility - due to component siting alternatives. • Cost Savings - due to considerably reduced installation time. • No Feed and Expansion Tank - hence avoiding “pumping over” problems, risk of freezing up etc. • Longer Life - due to virtual elimination of corrosion problems. |
Type | Vessel Kit |
Vessel pre-charge | 1.5 bar |
