Part Number: 14097

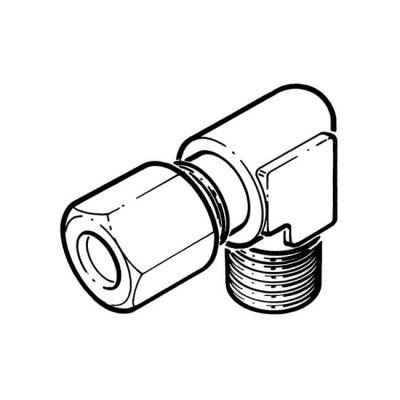

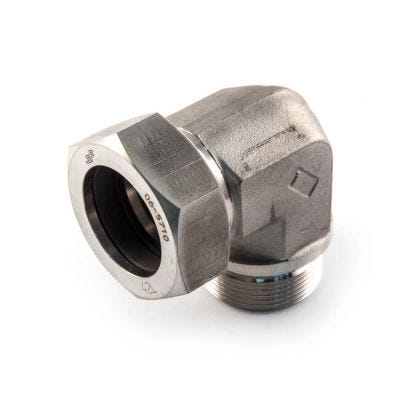

Stainless Steel Male Stud Elbow 42mm x 1.1/2" BSP PM
These fittings are generally known as DIN 2353 Single Ferrule fittings. Designed for use with stainless steel tubes. Ideal for installations where secure leak proof joints are essential.
The metric compression sizes given below refer to the size (outside diameter) of the tube which accepts the fitting.
The metric compression sizes given below refer to the size (outside diameter) of the tube which accepts the fitting.
BSP Explained
See More >
Specification
Manufactured/Approved To | BS EN ISO 9001:2008 |
Angle | 90° |
Connection | Compression x BSP Parallel |
Equal/Reducing | Reducing |
Fitting Type | Elbow |
Gender | M |
Material | Stainless Steel |
Max. Operating Pressure | Max. Working Pressure Range at 30° C: Up to 6 to 12 mm: 250 bar, 15 to 22 mm: 160 bar, 28 to 42 mm |
Size | 42 mm |
Type | Elbow |
