Part Number: 6070

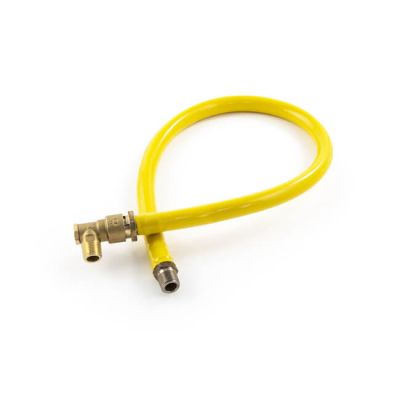

Steel Convoluted Hose 4ft Braided

Flexible metallic hose assembly to BS EN ISO 10380:2003. The flexible hose is stainless steel, the end fittings are stainless steel or (carbon) steel. This hose is suitable for Natural gas and LPG. Assembly temperature range : -20 to 70°C. The polyolefin cover is white or yellow according to stock.

The bayonet hose pressure limitation is fixed by the bayonet plug and socket which is identical to that used on a domestic cooker installation and is tested to 50 mbar at a maximum temperature of 95°C.

Product Specification

Bore 1/2"
Braiding Braided
Standards BS EN ISO 10380:2003
Colour White/Yellow

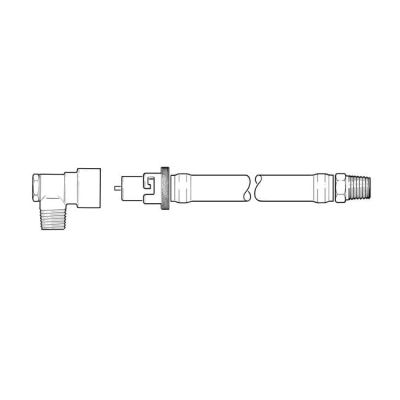

Connection BSP TM X Bayonet
Finish Polyolefin
Fittings Right Angled Socket
Length 4 Ft
Material Stainless Steel
Max. Operating Pressure Working: 50 Mbar
Size 1/2"
Suitable Application Suitable For Natural Gas And LPG.
Temperature -20°C To 70°C
Type Gas Hose
