Part Number: 6072

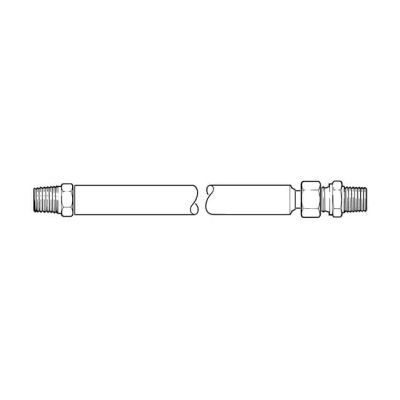

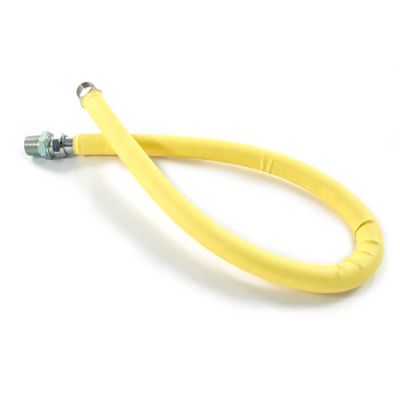

Steel Convoluted Hose 4ft x 3/4" Unbraided Male Adaptor
Flexible metallic hose assemblies to BS EN ISO 10380. The flexible hose is stainless steel, the end fittings are stainless steel or (carbon) steel. These hoses are suitable for Natural gas, LPG, water (but not potable water) and steam. Assembly temperature range : -20 to 400°C. The polyolefin cover is white or yellow according to stock.
For quick disconnect automatic shut-off couplings for use with water Click Here.
NOTE: With bayonet hoses the pressure limitations are fixed by the bayonet plug and socket which is identical to that used on domestic cooker installations and is tested to 50 mbar at a maximum temperature of 95°C.
For quick disconnect automatic shut-off couplings for use with water Click Here.
NOTE: With bayonet hoses the pressure limitations are fixed by the bayonet plug and socket which is identical to that used on domestic cooker installations and is tested to 50 mbar at a maximum temperature of 95°C.
See More >
Specification
Bore | 3/4" |
Braiding | Unbraided |
Standards | BS EN ISO 10380 |
Colour | White/Yellow |
Connection | BSP TM x F Swivel |
Finish | Polyolefin |
Fittings | TM x F swivel + M x M adaptor |
Length | 4 ft |
Material | Stainless Steel |
Operating Pressure | Max: 3.6 bar |
Size | 3/4" |
Suitable Application | Suitable for: Natural Gas, LPG, water (but not potable water) and steam. |
Temperature | -20°C to 400°C |
Type | Gas Hose |
