Part Number: 26862
Manufacturer's Part Number: DC711-VIEW-KIT
TPI DC711 View App Enabled flue gas analyser features long life O2 and CO sensors, power button. charging indicator, hanging hook and built-in magnets for mounting.
Supplied ready to connect to the TPI View app via Bluetooth® on smartphones or tablets to measure, record, and report flue gas analysis data by email.

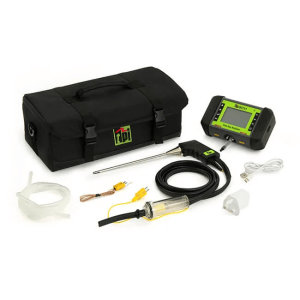

Supplied with protective rubber end caps, Li-ion rechargeable battery, mains charger with USB C connection, 2.5 m pressure hose, combustion probe with integrated Type “K” thermocouple and padded carry case.
Key Features:
◦ Multi-Gas Detection: Simultaneously measures and display levels of oxygen (O₂), carbon monoxide (CO) and carbon dioxide (CO₂).
◦ High Accuracy and Resolution: Features advanced sensors with high accuracy and fine resolution to detect even minute changes in gas concentrations.
◦ Data Logging: Equipped with an extensive data logging capability, the TPI DC711 can store up to 100 sets of test results for trend analysis and record-keeping.
◦ User-Friendly Interface: The device boasts a large, backlit graphic LCD screen for clear visibility in all lighting conditions, coupled with intuitive navigation buttons for easy operation.
◦ Durable and Portable: Designed for field use, the TPI DC711 is housed in a rugged, impact-resistant casing with protective rubber end-caps. It is lightweight and comes with a padded carrying case for easy transport.
NOTE: analyser kits will be delivered direct from our supplier owing to instrument calibration. UK delivery will be within 4 days. Order cancellation may incur charges.
Supplied ready to connect to the TPI View app via Bluetooth® on smartphones or tablets to measure, record, and report flue gas analysis data by email.
Supplied with protective rubber end caps, Li-ion rechargeable battery, mains charger with USB C connection, 2.5 m pressure hose, combustion probe with integrated Type “K” thermocouple and padded carry case.
Key Features:
◦ Multi-Gas Detection: Simultaneously measures and display levels of oxygen (O₂), carbon monoxide (CO) and carbon dioxide (CO₂).
◦ High Accuracy and Resolution: Features advanced sensors with high accuracy and fine resolution to detect even minute changes in gas concentrations.
◦ Data Logging: Equipped with an extensive data logging capability, the TPI DC711 can store up to 100 sets of test results for trend analysis and record-keeping.
◦ User-Friendly Interface: The device boasts a large, backlit graphic LCD screen for clear visibility in all lighting conditions, coupled with intuitive navigation buttons for easy operation.
◦ Durable and Portable: Designed for field use, the TPI DC711 is housed in a rugged, impact-resistant casing with protective rubber end-caps. It is lightweight and comes with a padded carrying case for easy transport.
NOTE: analyser kits will be delivered direct from our supplier owing to instrument calibration. UK delivery will be within 4 days. Order cancellation may incur charges.
See More >
DIRECT DISPATCH
This item will be delivered direct from the supplier
Specification
Brand | TPI |
Battery Life | >6 hours typical |
CO Range | 0 to 10,000 ppm |
Dimensions | Analyser: H 125 x W 185 x D 65 mm. Sampling probe: 250 mm x 6 mm dia. |
Flue Temperature | Max.: 800°C |
Fuel Types | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse |
Gas Measurements | Differential temperature, CO and O₂. |
Hose Length | 2 m |
Kit Contents | TPI DC711 Instrument, protective rubber end caps, Li-ion rechargeable battery, Mains charger with USB C connection, 2.5 m pressure hose, Combustion probe with integrated Type “K” thermocouple, Padded carry case. |
Operating Temperature | -10 to 50°C |
Power Supply | Rechargeable Li-ion battery (3.7 V/2600 mA) |
Pressure Units | mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O |
Type | Flue Gas Analyser Kit |
Type of Analyser | Boiler flue gas |
Weight | 830 g |
