Part Number: 20459
Manufacturer's Part Number: 4215522

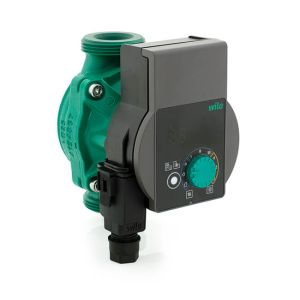

Wilo Yonos PICO 25/1-5-130 Central Heating Pump
The Wilo Yonos PICO 25/1-5-130 Central Heating Pump is a high-efficiency inline pump that combines electronic precision with advanced features for optimal performance. This maintenance-free, glandless circulator with a screw-end connection is designed to meet the demands of heating, industrial circulation and air-conditioning applications, offering versatility and reliability.
The Wilo-Yonos PICO features an electronically controlled, blocking-current proof synchronous motor based on ECM technology. This technology, combined with built-in electronic power control, allows for variable differential pressure control, ensuring efficient and tailored performance.
The pump has versatile application, suitable for a wide range of applications in domestic buildings for all central heating, underfloor heating, cooling and air-conditioning systems, providing flexibility in its usage.
Selectable control modes enable optimum load adjustment, including differential pressure constant (Δp-c), differential pressure variable (Δp-v) for different pressure control with radiator and underfloor heating systems. It also has three fixed speed options for added control.
With a maximum head of 5.1 metres and equipped with motor protection to ensure longevity and reliability.
The pump is equipped with a user-friendly LED display that allows users to set the setpoint, monitor current consumption in watts, and track the flow rate in m³/h, providing real-time insights for efficient operation.
Setting a benchmark in energy efficiency with an EEI of ≤ 0.20 and ErP 2015 approval for an economical system.
Features such as automatic deblocking, manual pump venting for rotor chamber ventilation, and manual restart contribute to the user-friendly design, making installation and maintenance hassle-free.
Upgrade your system with the Wilo-Yonos PICO, a pump that combines cutting-edge technology with thoughtful features to deliver high-performance and reliable operation for your needs.
- Highly effective and energy-efficient
- Compact design with plug & play wiring for easy installation
- Self venting with integrated motor protection
- Automatic deblocking and restart function
- EEI of ≤ 0.20 and ErP 2015 approval for an economical system
- 1.1/2" BSP M connection
- 130mm port-to-port measurement
- Maximum head of 5.1 metres
- IPX4D protection rating
- Selectable control modes
- Built-in electronic power control
- Operates on a standard 230 V AC, 50 Hz power supply
- Handles a temperature range from -10 to 95°C
|1.1/2" BSP M
|Energy Efficiency Index
|4 to 33 W
|Max. Operating Pressure
|Yonos PICO 25/1-5
|Port To Port
|230 V AC, 50 Hz
|-10 to 95°C
