Part Number: 23245
Manufacturer's Part Number: 39855

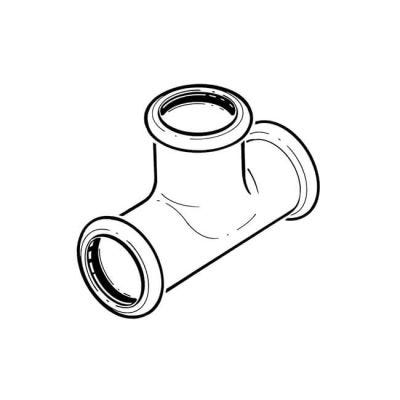

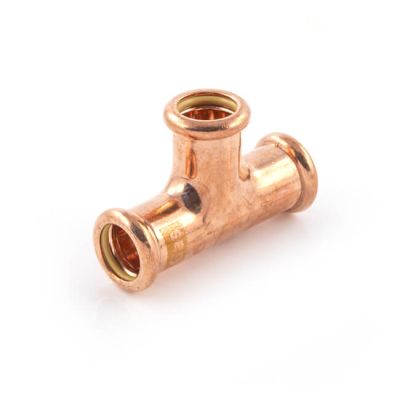

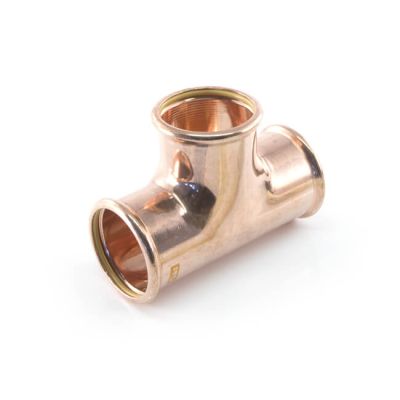

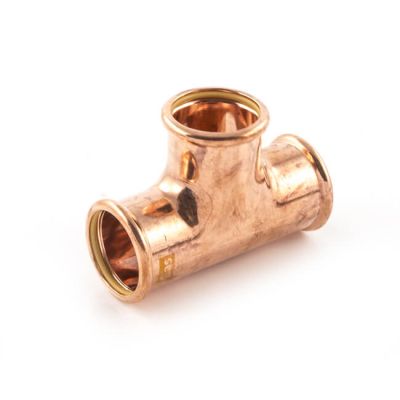

Press-fit 54 mm XPress Gas Equal Tee - Designed specifically for use on internal and external, above ground 2nd and 3rd family gas installation pipework. BSI Kitemark (BS 8537) and GASTEC approved. Manufactured by a BS EN ISO 9001 registered company. for identification fitting has yellow/tan NBR O-rings and "Gas" marked in a yellow block on the fitting body. XPress fitting provides electrical continuity when pressed/installed with copper tube to BS EN 1057/+A1 R250/R290.
XPress fitting should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
XPress fitting should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
See More >
Specification
Brand | Pegler |
Sub Brand | XPress Gas |
Approved by | GASTEC approved |
Kitemark | BS 8537 |
Standards | BS 8537 |
Manufactured/Approved To | BS EN ISO 9001 |
Connection | M Press |
Designation | Gas |
End Dimension (A) | 54 mm |
End Dimension (B) | 54 mm |
Equal/Reducing | Equal |
Material | Copper |
Max. Operating Pressure | 1 bar (internal use),5 bar (external use) |
Size | 54 mm |
Type | Tee |
