Part Number: 22507
Manufacturer's Part Number: 39701

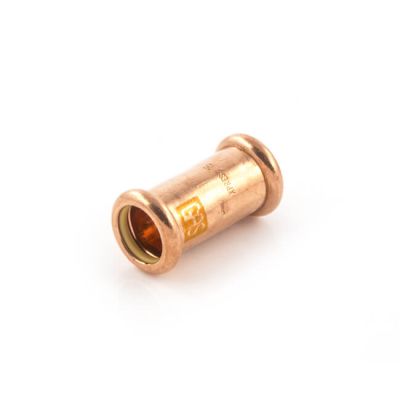

Press-fit 22 mm XPress Gas Straight Coupling - XPress Gas fittings are manufactured from copper or copper alloy and are designed specifically for use on internal and external, above ground 2nd and 3rd family gas installation pipework. BSI Kitemark (BS 8537:2010) and GASTEC approved. Manufactured by a BS EN ISO 9001:2000 registered company. for identification fittings have yellow/tan NBR O-rings and "Gas" marked in a yellow block on the fitting body. Working pressure range : 1 bar (internal use), 5 bar (external use) at -20°C to 70°C.XPress Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057 R250/R290.XPress Fittings should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
Product Specification
Brand | Pegler |
Sub Brand | XPress Gas |
Approved by | GASTEC approved |
Kitemark | BSI Kitemark (BS 8537:2010) |
Standards | BSI Kitemark (BS 8537) |
Manufactured/Approved To | BS EN ISO 9001:2008 |
Connection | M Press |
Designation | Gas |
Equal/Reducing | Equal |
Material | Copper |
Max. Operating Pressure | 1 bar (internal use),5 bar (external use) |
Operating Pressure | Working Pressure Range : 1 bar (internal use), 5 bar (external use) at -20°C to 70°C |
Size | 22 mm |
Type | Straight Coupler |
