Xpress Stainless Elbow - 22mm

£10.72 £8.93
£10.72 £8.93
More product options available

Part Number: 23438

Manufacturer's Part Number: 11622

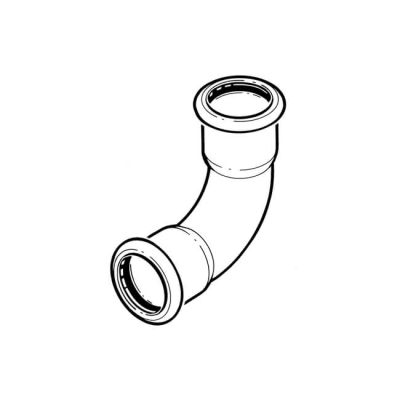

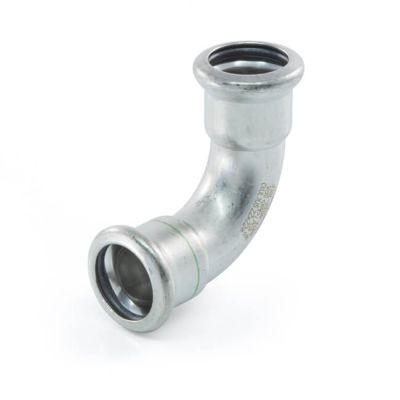

Xpress Stainless Elbow - 22mm

Press-fit 22 mm Elbow - XPress 316L Stainless steel fitting designed for use on potable water (including water purified by reverse osmosis), pharmaceutical, health care, food processing, low temperature hot water and chilled water applications. Press fitting ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed. For identification fitting has EPDM black O-rings. Fitting provides electrical continuity when pressed. Ffitting should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation. For installation of the fitting a REMS tool and tongs are required.

Product Specification

Approved by WRAS
Brand Pegler
Standards BS EN 1057 R250/R290
Demountable/Reusable No
Designation Water
Fitting Type Elbow
Kitemark BS 8537:2010
Manufactured/Approved To BS EN ISO 9001:2008
Material Stainless Steel
Max. Operating Pressure 16 bar
Size 22 mm
Sub Brand Xpress Water
Suitable Application Area where water quality and hygiene are crucial, pharmaceutical and health care environments, food processing.
Type Elbow
