Part Number: 22597

Manufacturer's Part Number: 38064

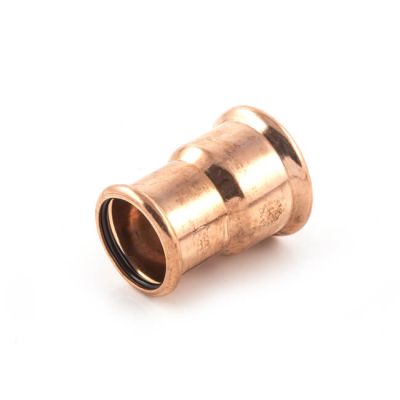

XPress Water Reducing Coupling - 22mm x 15mm

Press-fit 22 x 15 mm Reducing Coupling - XPress Copper fitting manufactured from copper or copper alloy. Press Fitting ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed. For identification fitting has butyl or EPDM black O-rings. Fitting provides electrical continuity when pressed/installed with copper tube to BS EN 1057 R250/R290.
Complies with DVGW Arbeitsblatt W534.
XPress Fittings should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.

Product Specification

Brand	Pegler
Sub Brand	XPress Water
Approved by	WRAS & KIWA
Kitemark	BS 8537:2010
Standards	BS EN 1057 R250/R290
Manufactured/Approved To	BS EN ISO 9001:2008
Connection	M Press
Designation	Water
Equal/Reducing	Reducing
Fitting Type	Reducing Coupling
Material	Copper
Max. Operating Pressure	16 bar
Operating Pressure	Working Pressure Range : 16 bar at -24° C to 110° C
Size	22 x 15 mm
Suitable Application	Designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications.
Type	Reducing Coupling
