Propane Pigtail Hose Assembly 20" NR POL x W20

£20.35 £16.96
£20.35 £16.96
More product options available

Part Number: 10625

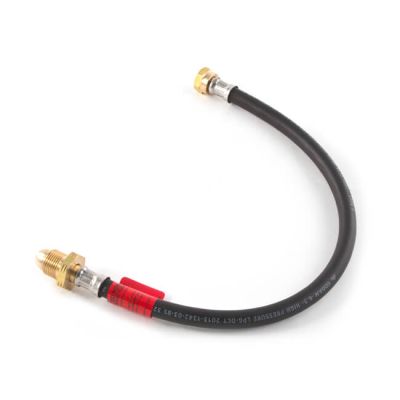

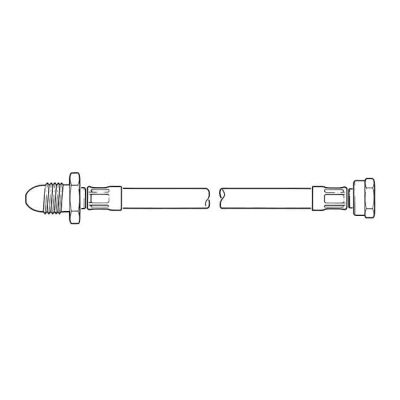

Propane Pigtail Hose Assembly 20" NR POL x W20

N/R POL + 5/8" LH nut x W20 nut and tail, braided.

High pressure hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. Red labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. Rodent proof galvanised multi-plait overbraid. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Propane only.

Product Specification

Application Propane
Braiding Braided
Standards BS 3212:1991 Type 2
Burst Pressure 69 bar
Connection N/R POL + 5/8" LH Nut x W20 Nut + Tail
Gas Type Propane
Inside Diameter 6.3 mm
Length 20"
N/R or S/T N/R
Operating Pressure Working pressure: 20 bar
Outside Diameter 15.5 mm
Suitable Application Propane
Type Pigtail Assembly
