Part Number: 8899

Manufacturer's Part Number: 001070AA

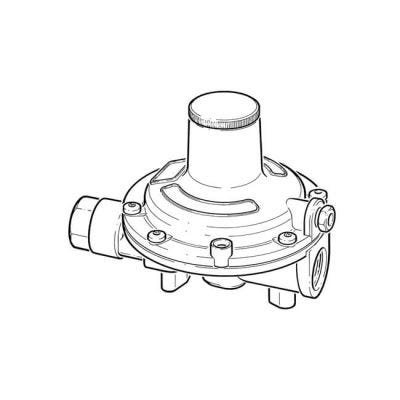

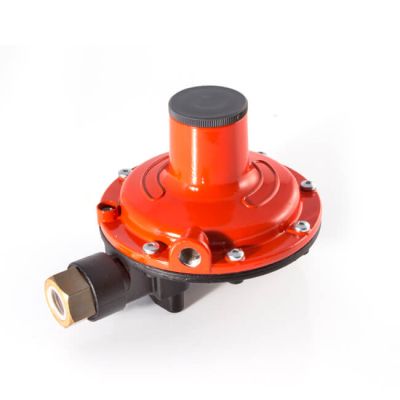

Clesse Propane Low Pressure Regulator - 30 kg/hr

1/2" BSP F x 3/4" BSP F second stage regulator with variable outlet pressure and integral relief valve set at 2 - 3 times the nominal outlet pressure.

Capacity: 30 kg (1 425 000 Btu) per hour.

Inlet pressure: 0.5 - 4 bar.

Product Specification

Ambient Temperature -20 To 60°C
Brand Clesse
Standards BS EN 13785
Capacity 30 Kg/h
Connection BSP
Flow Rate 30 Kg/h
Inlet 1/2" BSP TF
Inlet Pressure 0.5 - 4 Bar
Operating Pressure 20 To 200 Mbar
OPSO No
Outlet Connection 3/4" BSP TF
Pressure Release Valve Yes
Pressure Test Point No
Size 1/2" BSP F X 3/4" BSP F
Stage Second
Sub Brand Clesse
Suitable Application Propane Low Pressure
Type Second Stage Low Pressure
UPSO No
Vent Position Fixed
