DAB Evosta 3 60/130 Central Heating Circulator Pump

£102.18 £85.15
£102.18 £85.15
More product options available

Part Number: 20316

Manufacturer's Part Number: 60193271

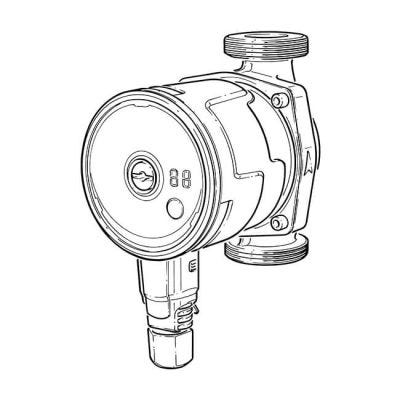

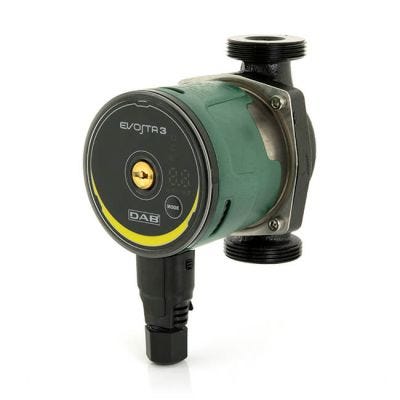

DAB Evosta 3 60/130 Central Heating Circulator Pump

The DAB Evosta 3 is a highly effective, energy efficient central heating circulator pump, tailored for small to medium-sized systems and is easy to swap out with your existing system, which prioritises efficiency.

Featuring an integrated speed controller to enhance energy efficiency by 3% to 60%, setting a benchmark in energy efficiency with an EEI of ≤ 0.19 and ErP 2015 approval for an economical system.

With a 1.1/2" BSP M connection, and 130mm port to port measurement, its easy plug functionality simplifies the replacement process for your existing pump.

The speed controller optimises RPM speed, providing the right water and pressure levels, offering maximum and minimum capacity, and a unique off-peak reduction option. IPX5 rating for protection against moisture.

The illuminated LED display showcases vital information, including energy usage and selected settings, enhancing user-friendly operation with 9 selectable modes. Manual settings allow customisation into three fixed speeds: constant speed, constant pressure, and proportional pressure.

For added convenience, this circulator operates on a standard 230 V AC, 50 Hz power supply and can handle a temperature range from -10 to 110°C, ensuring versatility in various applications.

Backed by a standard 5-year warranty for added reassurance, ensuring a long lasting heat pump option.

Compatible motorised valves and pump valves available.

Benefits

  • Highly effective and energy-efficient
  • Tailored for small to medium-sized systems
  • Easy to swap out with existing systems
  • Integrated speed controller enhances energy efficiency by 3% to 60%
  • EEI of ≤ 0.19 and ErP 2015 approval for an economical system
  • 1.1/2" BSP M connection
  • 130mm port-to-port measurement
  • Speed controller optimises RPM speed
  • Illuminated LED display showcases vital information
  • User-friendly controls with 9 selectable modes
  • Operates on a standard 230 V AC, 50 Hz power supply
  • Handles a temperature range from -10 to 110°C
  • IPX5 rating for protection against moisture
  • Backed by a standard 5-year warranty.
See More >

Specification

Brand DAB
Approved by ErP 2015, CE
Application Water Circulation
Connection 1.1/2" BSP M
Energy Efficiency Index ≤ 0.18
Input Power 35 W max.
Insulation Class F
Liquid Temp. Range -10 ° C to +110° C
Material Cast Iron Body
Max. Head 6 m
Max. Operating Pressure 10 bar
Model Name EVOSTA 60/130
Port To Port 130 mm
Power Supply 230 V AC, 50 Hz
Protection Rating IPX5
Size 1.1/2"
Speed Setting 3 Fixed Speed, 6 Variable Speed
Type Circulating Pump
Weight 2.05 kg
