Part Number: 21100
DirtmagIQ Magnetic Strainer - 22mm

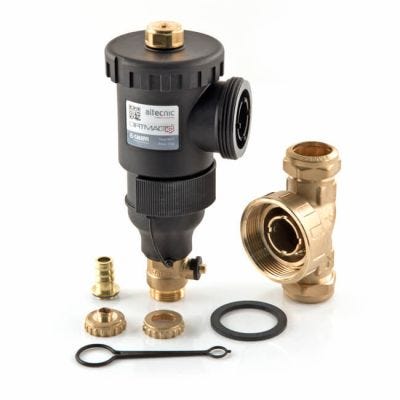

The DirtmagIQ magnetic strainer collects magnetic and suspended contaminants in a fluid based heating system. The multidirectional fit, rotating brass body has compression connections. The lightweight technopolymer housing has an air vent on top and is fitted with a removable magnetic belt. Strainer is flushed via a 3/4"full bore discharge valve with hose tail.
Product Specification
| Brand | Altecnic |
| Sub Brand | Dirtmag |
| Dimensions | H 238 x W 84 x 130 mm projection from pipe centre. |
| Material | Technopolymer |
| Max. Glycol | 0.3 |
| Max. Operating Pressure | 3 bar |
| Size | 22 mm |
| Temperature Range | 0 to 90°C |
| Type | Filter |
