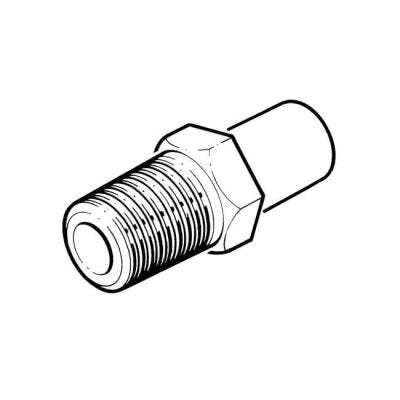

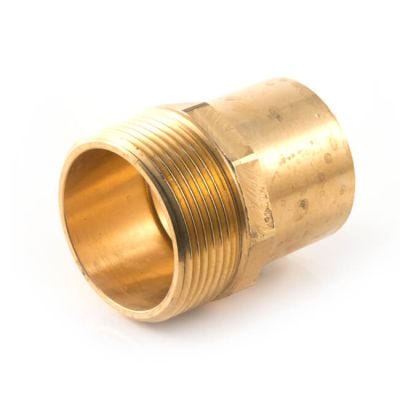

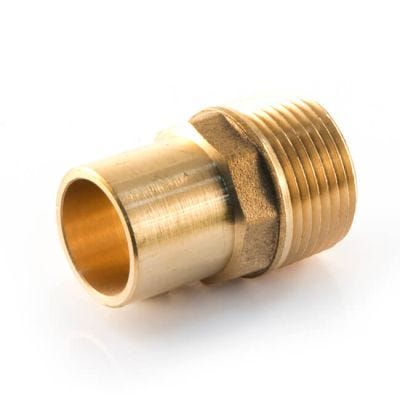

The End Feed Adaptor allows you to attach your pipes together with a 3/4” BSP tapered male to 22mm male connection and made from a brass material providing a tight seal, minimising the risk of leaks.
It adheres to either BS 864-2 or BS EN 1254 standards, ensuring that it meets industry regulations and specifications to ensure reliability.
The precision-engineered male ends of the fitting are designed to connect to a 22mm fitting adapting this to a 3/4” BSP tapered male connection ensuring a secure and tight fit, minimising the risk of leaks. This versatility makes it suitable for a wide range of plumbing applications, offering flexibility in system design and installation.
With its end feed adaptor design, made from brass material, these fittings are relatively easy to install, meaning you can save time and effort during plumbing projects providing a secure tight seal on your pipes.
PLEASE NOTE: This item will require soldering to connect it
BSP Explained
×
BES Ltd., British Standard Pipe Thread Identification Chart.
BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.
Further advice can be obtained from our Technical Team if you are still unsure.
BSP Size
Actual Diameter of Thread
1/8"
9.728 mm
1/4"
13.157 mm
3/8"
16.662 mm
1/2"
20.995 mm
3/4"
26.441 mm
1"
33.249 mm
1 1/4"
41.910 mm
1 1/2"
47.803 mm
2"
59.614 mm
2 1/2"
75.184 mm
3"
87.884 mm
The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.
