Fan Coil Connector 3/4" BSP F Swivel x BSP TM x 600mm

Name: Fan Coil Connector 3/4" BSP F Swivel x BSP TM x 600mm
Brand: Pamet
SKU: 14870
Price: 14.91 GBP
Availability: InStock

Braided fan coil flexible connectors can be used for the final connection to fan coil units. They are manufactured to reduce possible vibration and offer a high degree of flexibility allowing misalignment of pipework.
Specification :
Hose : Stainless steel 321 annular corrugated and a single stainless steel AISI 304 external wire braid.
End connections : Manufactured in carbon steel.
Safe working pressure : Fitting size : 1/2" 70 bar, 3/4" 50 bar, 1" 40 bar.

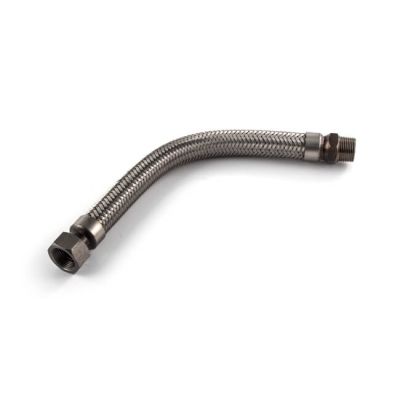

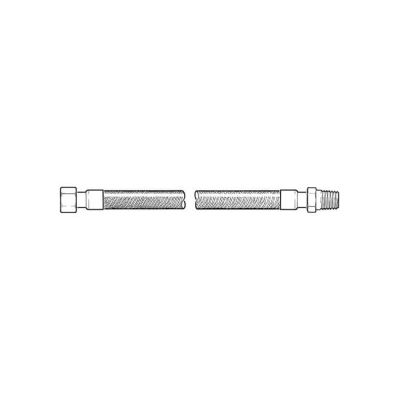

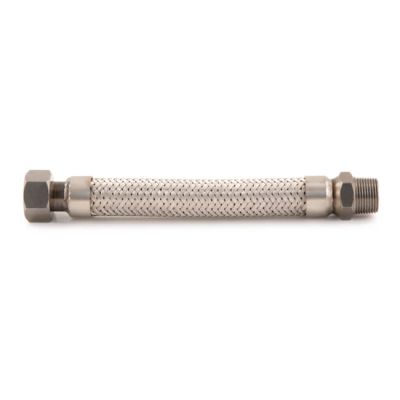

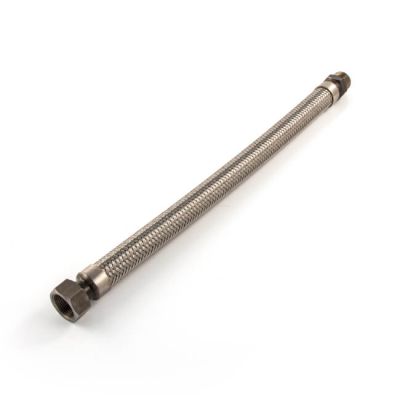

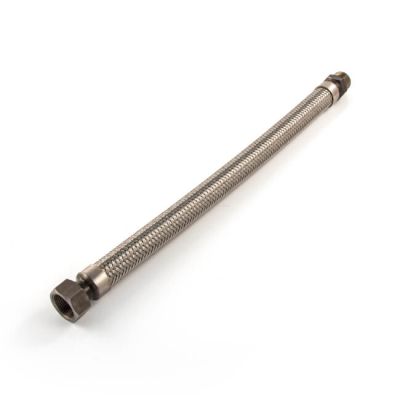

P/Ns 14863 to 14871 : One end terminated with a BSP swivel female complete with a flat seat. Other end with a BSPT hexagon fixed male connection.
P/Ns 14872 to 14880 : Both ends terminated with BSPT hexagon fixed male connections.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Brand	Pamet
Colour	Stainless Steel
Connection	BSP F Swivel x BSP TM
Finish	Stainless Steel Braid
Fittings	F swivel x TM
Material	Stainless Steel Corrugated
Max. Operating Pressure	Working: 50 bar
Suitable Application	Braided fan coil flexible connectors can be used for the final connection to fan coil units. They are manufactured to reduce possible vibration and offer a high degree of flexibility allowing misalignment of pipework.
Type	Flexible Connector
