Part Number: 21929

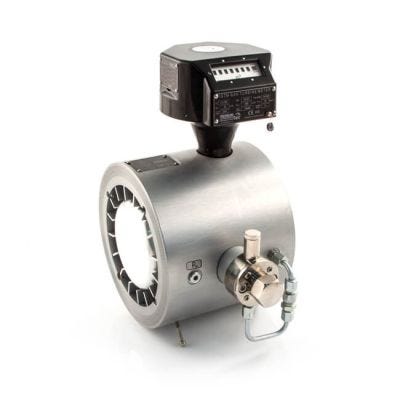

Vemm Tec IGTM G400 Turbine Gas Meter 4" DN100
Vemm Tec IGTM Wafer Type PN10/16 Meters. The IGTM-WT is an industrial gas turbine meter for non-aggressive gases that is insensitive to upstream flow disturbances. Features an 8-digit mechanical counter, low frequency pulse output, lightweight anodized aluminium body, IP65 rated, suitable for PN10/16 and Zone 1 applications and can be connected to an electronic volume converter (EVC) or building management system (BMS).
PED (97/23/EC) compliant. DN65, 80, 100 and 150: 1 pulse per 1 m³. The manufacturer recommends a top hat filter is fitted to protect the meter.
PED (97/23/EC) compliant. DN65, 80, 100 and 150: 1 pulse per 1 m³. The manufacturer recommends a top hat filter is fitted to protect the meter.
See More >
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Specification
Brand | Vemm Tec |
Standards | PED (97/23/EC) compliant |
Accuracy | ± 3% for Qmin ≤ Q <0.2 Qmax.± 1.5% for 0.2 Qmax ≤ Q ≤Qmax |
Capacity | 650 m³/h |
Connection | 4" |
Display | Mechanical |
Flow Rate | 32 to 650 m³/h |
Material | Aluminium |
Meter Connection Size | 4" DN100 |
Meter Type | Turbine |
Nominal Bore | 4" DN100 |
Protection Rating | IP65 |
Pulse Rate | 1 m³/pulse |
Suitable Application | Industrial gas turbine meter for non-aggressive gases that is insensitive to upstraem flow disturbances |
Test Point | No |
Type | Commercial Meter |
