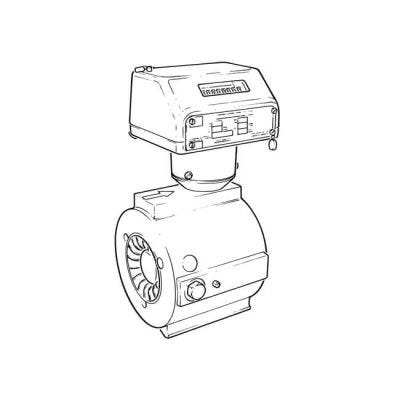

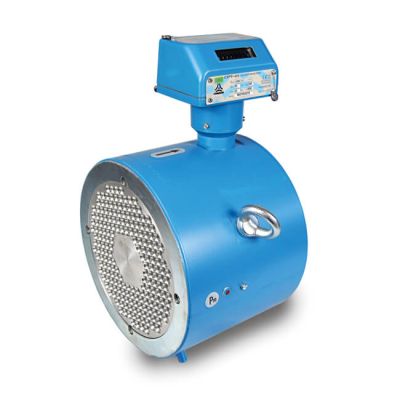

G650 Turbine Quantometer Gas Meter - 8"

Name: G650 Turbine Quantometer Gas Meter - 8"
Brand: Unbranded
SKU: 22126
Price: 2388.75 GBP
Availability: InStock

Wafer type steel body.

Turbine meters suitable for Natural Gas and LPG with a low pressure drop to comply with the requirements of IGEM/UP/2. Body manufactured from steel. A low frequency pulse output transmitter is fitted and the meter can be connected to a remote display or BMS. The meters are IP65 rated and suitable for internal and external installation, however they must be protected from direct weather influences. The meter can be installed vertically or horizontally and the index assembly can be rotated through 345°.

Install the meter after a pipe length of 5D upstream and 3D downstream.
