Part Number: 23667
Manufacturer's Part Number: ACDG10

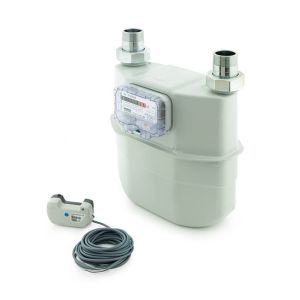

ITRON G10P Diaphragm Gas Meter
Manufactured by an ISO 9001 company in Europe, certified under the European certification regime and sealed. Metrology is in accordance with BS EN 1359 and MID. Approved to MID (04/22/EC) module B and BS EN 1359. Meter reads in cubic metres. Supplied without test point. Meter can be fitted with a Cyble module with 5 m lead if required; see P/N 21885. Check that this meter has the inlet/outlet dimension ‘A’ and connection size to meet with the requirements because these may differ from the traditional ‘UK’ meter dimensions.
See More >
Product Specification
Brand | Itron |
Approved by | MID (04/22/EC) module B & BS EN 1359 |
Capacity | 16 m³/h |
Display | Mechanical |
Material | Steel |
Max. Capacity | 4 m³/hr at 0.5 mbar pressure loss |
Max. Operating Pressure | 0.5 bar |
Meter Connection Size | 1.1/2" BSP TM |
Meter Type | Diaphragm |
Suitable Application | Natural Gas & LPG |
Test Point | No |
Type | Commercial Meter |
