Part Number: 22447

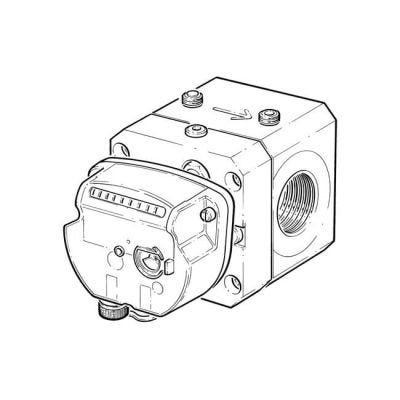

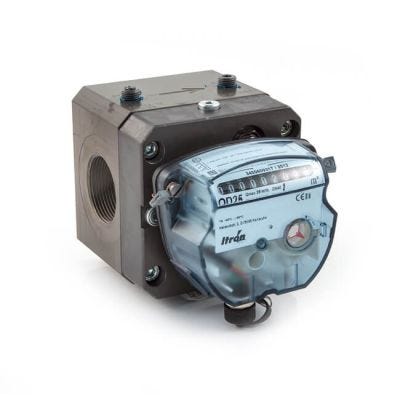

ITRON Quantometer Delta QD25 Rotary Gas Meter
ITRON Delta QD volumetric rotary meters are designed to measure natural gas, various filtered non-corrosive gases and compressed air. Features a 9-digit mechanical totaliser, aluminium hard anodised housing, dynamically balanced pistons and stainless steel ball bearings. Complies with PED and ATEX Directive.
Meter Metrology is not influenced by installation conditions so can be used without installing a straight pipe length before the meter.
Starting flow: <0.035 m³/h.
LF transmitter: reed switch.
Meter Metrology is not influenced by installation conditions so can be used without installing a straight pipe length before the meter.
Starting flow: <0.035 m³/h.
LF transmitter: reed switch.
See More >
Specification
Accuracy | <±1.5% on the complete flow range |
Ambient Temperature | -30 to 60°C |
Brand | Delta QD |
Capacity | 25 m³/h |
Connection | 1.1/2" |
Dimensions | 126 mm x 121 mm x 172 mm |
Display | Mechanical |
Flow Rate | 0.8 to 25 m³/h |
Height | 126 mm |
Material | Aluminium |
Max. Operating Pressure | 16 bar |
Meter Connection Size | 1.1/2" DN40 |
Meter Type | Rotary |
Nominal Bore | 1.1/2" DN40 |
Pulse Rate | 0.01 m³/pulse |
Suitable Application | Turbine meters suitables & LPG with a low pressure drop. |
Test Point | No |
Type | Commercial Meter |
Weight | 4 kg |
