Part Number: 12645

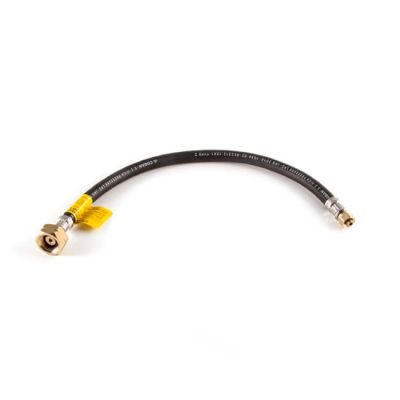

Butane Pigtail 20" NR Butane Nut x 1/4" Standpipe

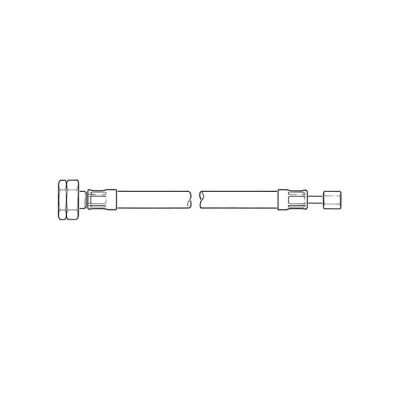

20" N/R butane nut x 1/4" copper standpipe, nut + olive included.
High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. Red labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Butane only.
|Standards||BS 3212:1991 Type 2|
|Burst Pressure||69 bar|
|Connection||N/R Butane Nut x 1/4" Standpipe|
|Inside Diameter||6.3 mm|
|N/R or S/T||N/R|
|Operating Pressure||Working pressure: 20 bar|
|Outside Diameter||15.5 mm|
