Part Number: 12649

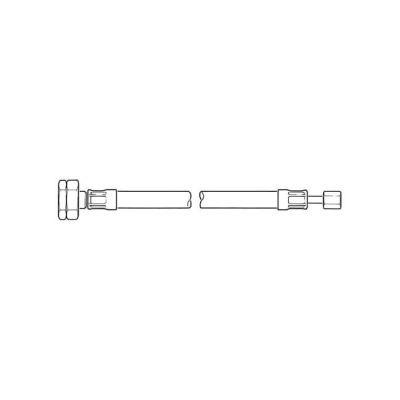

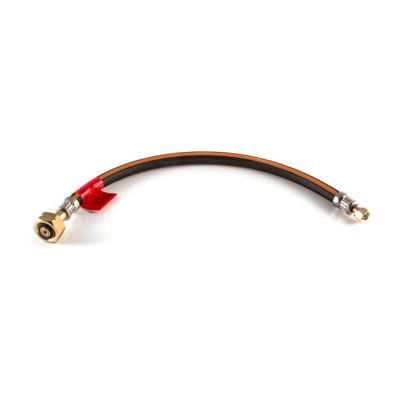

Butane Pigtail 20" ST Butane Nut x 1/4" Standpipe
20" S/T butane nut x 1/4" copper standpipe, nut + olive included.
High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. White labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Butane only.
Product Specification
Application | Butane |
Braiding | Unbraided |
Standards | BS 3212:1991 Type 2 |
Burst Pressure | 69 bar |
Colour | Black |
Connection | S/T Butane Nut x 1/4" Standpipe |
Gas Type | Butane |
Inside Diameter | 6.3 mm |
Length | 20" |
N/R or S/T | S/T |
Operating Pressure | Working pressure: 20 bar |
Outside Diameter | 15.5 mm |
Suitable Application | Butane |
Type | Pigtail Assembly |
