Part Number: 10844

Manufacturer's Part Number: 775212201

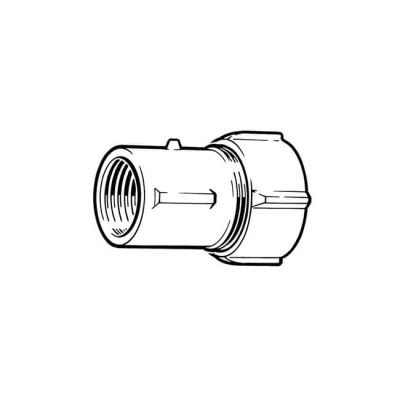

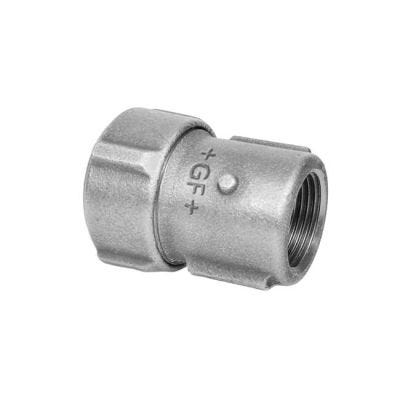

Primofit® Adaptor Gas 1/2" BSP x 20mm MDPE Galvanised

Compression fitting to join yellow gas MDPE pipe to steel pipe (pipe to BS EN 10255:2004(BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 or 2458 Series 1). Supplied with insert stiffener.
Fitting is made by a BS EN ISO 9001:2008 registered company.
The pipe is inserted into the fitting to the predetermined length and the nut tightened, no special tools are required.
Angular deflection: the joint will cope with a misalignment of the connected pipes.

Suitable for Natural Gas and LPG.

Product Specification

Angular Deflection
Brand Primofit
Colour Galvanised
Connection BSP PF X MDPE
Finish Galvanised
Material Malleable Iron
Pressure 7 Bar
Size 1/2" X 20 Mm
Sub Brand Primofit
Suitable Application To Join Yellow Gas MDPE Pipe To Steel Pipe.
Temperature Range -20°C To 40°C
Thread Type BSP PF
Type Adaptor
