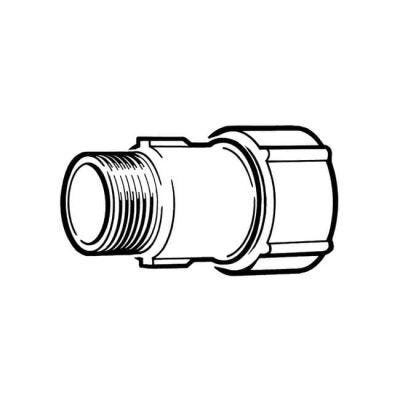

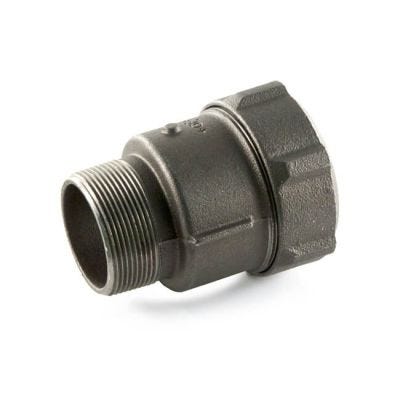

Primofit® Adaptor Gas 1" BSP M x 32mm MDPE Black

£58.61 £48.84
£58.61 £48.84
More product options available

Part Number: 9750

Manufacturer's Part Number: 775201103

Primofit® Adaptor Gas 1" BSP M x 32mm MDPE Black

Compression fitting to join yellow gas MDPE pipe together and for transition; i.e. to join yellow gas MDPE pipe to steel pipe (pipe to BS EN 10255 and BS EN 10220). Manufactured by a BS EN ISO 9001 registered company. The pipe is inserted into the fitting to the predetermined length and the nut tightened. Special tools are not required. Instructions are supplied with each fitting. Fittings for use with MDPE pipes are supplied complete with insert stiffeners.
For underground use, fittings should be wrapped twice with corrsion protective tape (P/N's 9321, 9322 or 9323).

Suitable for Natural Gas and LPG.
If the installation is to be in accordance to GIS/PL3, then galvanised fittings are required.

Nut and body material: Black Malleable Iron.
Seal material: Nitrile compound.
Maximum pressure at 20°C 7 bar (maximum operating pressure is dependent on MDPE pipe specification and standard).
Angular deflection: the joint will cope with a misalignment of the connected pipe of up to 6° inclusive.
Threads: Male, BSP taper to ISO 7-1 female, BSP parallel to ISO 7-1.

Product Specification

Brand Primofit
Sub Brand Primofit
Standards BS EN 10255, BS EN 10220 and BS EN ISO 9001
Angular Deflection
Connection BSP M x MDPE
Finish Black
Material Malleable Iron
Pressure 7 bar
Size 1" x 32 mm
Suitable Application To join yellow gas MDPE pipe to steel pipe (steel pipe to BS EN 10255:2004 (BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 or 2458 Series 1).For use with Natural Gas and LPG.
Temperature Range -20°C to 40°C
Thread Type BSP TM
Type Adaptor
