Part Number: 12628

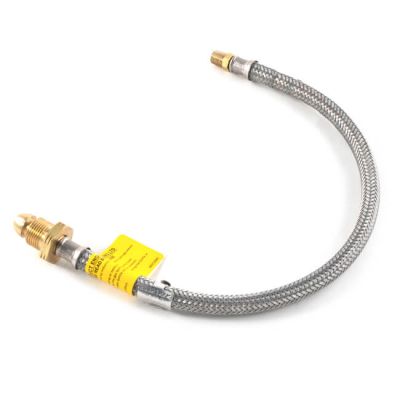

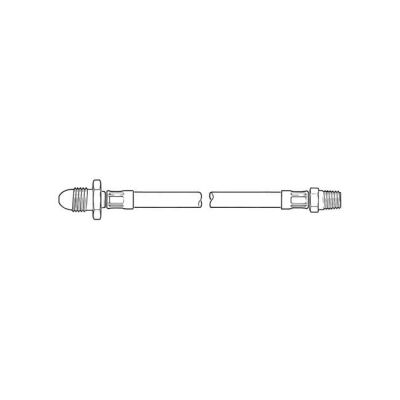

Propane Pigtail Hose Assembly 20" ST POL x BSP TM
S/T POL + 5/8" LH nut x 1/4" BSP TM, braided.
High pressure hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. White labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. Rodent proof galvanised multi-plait overbraid. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Propane only.
|Standards||BS 3212:1991 Type 2|
|Burst Pressure||69 Bar|
|Connection||S/T POL X 5/8" LH Nut X 1/4" BSP TM|
|Inside Diameter||6.3 Mm|
|N/R Or S/T||S/T|
|Operating Pressure||Working Pressure: 20 Bar|
|Outside Diameter||15.5 Mm|
