Part Number: 12629

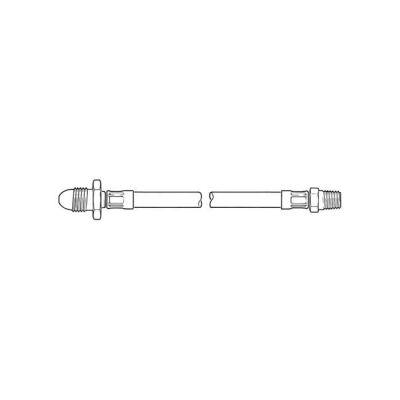

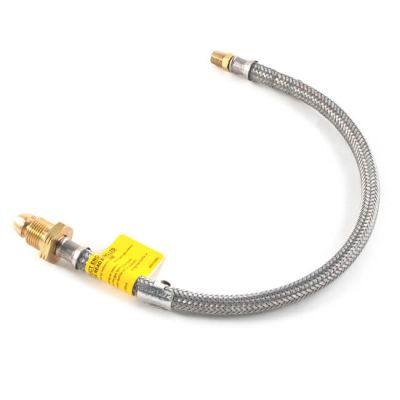

Propane Pigtail Hose Assembly 35" ST POL x BSP TM

S/T POL + 5/8" LH nut x 1/4" BSP TM, braided.

High pressure hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. White labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. Rodent proof galvanised multi-plait overbraid. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Propane only.

Product Specification

Application Propane
Braiding Braided
Standards BS 3212:1991 Type 2
Burst Pressure 69 Bar
Connection S/T POL X 5/8" LH Nut X 1/4" BSP TM
Gas Type Propane
Inside Diameter 6.3 Mm
Length 35"
N/R Or S/T S/T
Operating Pressure Working Pressure: 20 Bar
Outside Diameter 15.5 Mm
Suitable Application Propane
Type Pigtail Assembly
