Part Number: 6075

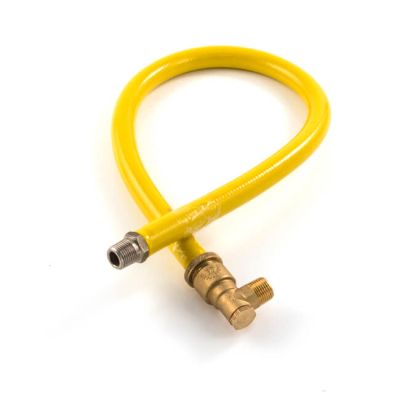

Steel Convoluted Hose 4ft Unbraided
Flexible metallic hose assembly to BS EN ISO 10380. The flexible hose is stainless steel, the end fittings are stainless steel or (carbon) steel. This hose is suitable for Natural gas and LPG. Assembly temperature range : -20 to 70°C. The polyolefin cover is white or yellow according to stock.
The bayonet hose pressure limitation is fixed by the bayonet plug and socket which is identical to that used on a domestic cooker installation and is tested to 50 mbar at a maximum temperature of 95°C.
The bayonet hose pressure limitation is fixed by the bayonet plug and socket which is identical to that used on a domestic cooker installation and is tested to 50 mbar at a maximum temperature of 95°C.
See More >
Specification
Bore | 1/2" |
Braiding | Unbraided |
Standards | BS EN ISO 10380 |
Colour | White/Yellow |

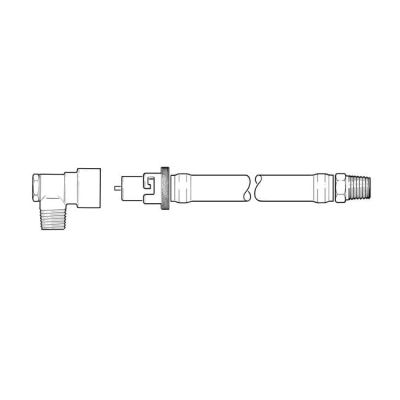

Connection | BSP TM x Bayonet |
Finish | Polyolefin |
Fittings | Right angled socket |
Length | 4 ft |
Material | Stainless Steel |
Operating Pressure | Max: 50 mbar |
Size | 1/2" |
Suitable Application | Suitable for Natural Gas and LPG. |
Temperature | -20°C to 70°C |
Type | Gas Hose |
