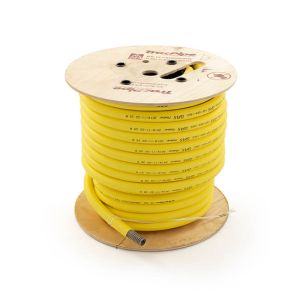

TracPipeCC® Flexible Steel Gas Pipe - 28mm x 55m

£1,626.18 £1,355.15
£1,626.18 £1,355.15
More product options available

Part Number: 24066

Manufacturer's Part Number: FGP-SS4-28-55CC

TracPipeCC® Flexible Steel Gas Pipe - 28mm x 55m

TracPipeCC (Complete Containment) includes an original TracPipe with an additional robust outer cover with internal ridges that allow any escaping gas to move freely to ventilated areas at the ends of the pipe.

TracPipeCC 28 mm is a stainless steel, semi-rigid (bendable) corrugated gas pipe with a yellow polyethylene cover that is fire and smoke retardant, suitable for natural gas and LPG installations generally between the meter and appliance.

TracPipeCC sizes22 mm28 mm32 mm40 mm and 50 mm are available, and in lengths of 30 m, 50 m and 90 m.

Benefits

  • Lightweight, easy to handle and transport
  • Designed for routing within unventilated voids as well as through specified hazardous areas
  • Run continuous lengths of 28 mm TracPipeCC
  • Can be run horizontally and vertically
  • No soldering or welding
  • Pulling string installed between primary and secondary outer covers

The pipe may be bent by hand, but must NOT be used where repeated bending occurs after installation.

TracPipe AutoFlare fittings are used to connect TracPipeCC. No welding, soldering or threading is required.

Shop more from TracPipe®
Download the TracPipe® App here
Get it on Google PlayGet it on Google Play
Download on the App StoreDownload on the App Store
WEIGHT & SIZE RESTRICTIONS

Some delivery options may not be available

Product Specification

Brand TracPipe®
Standards BS EN 15266 & BS 7838
Inside Diameter 26.9 mm (Nominal)
Outside Diameter 38 mm (Cover)
Length 55 m
Material Stainless Steel
Max. Operating Pressure 75 mbar
Min. Bend Radius 127 mm
Size 28 mm
Size code for pipe DN28
Suitable Application To run internal Natural gas and LPG supplies from the meter to the appliances through unventilated voids. Can be buried underground or directly in screed without the need for additional corrosion protection.
Type Flexible Pipe
